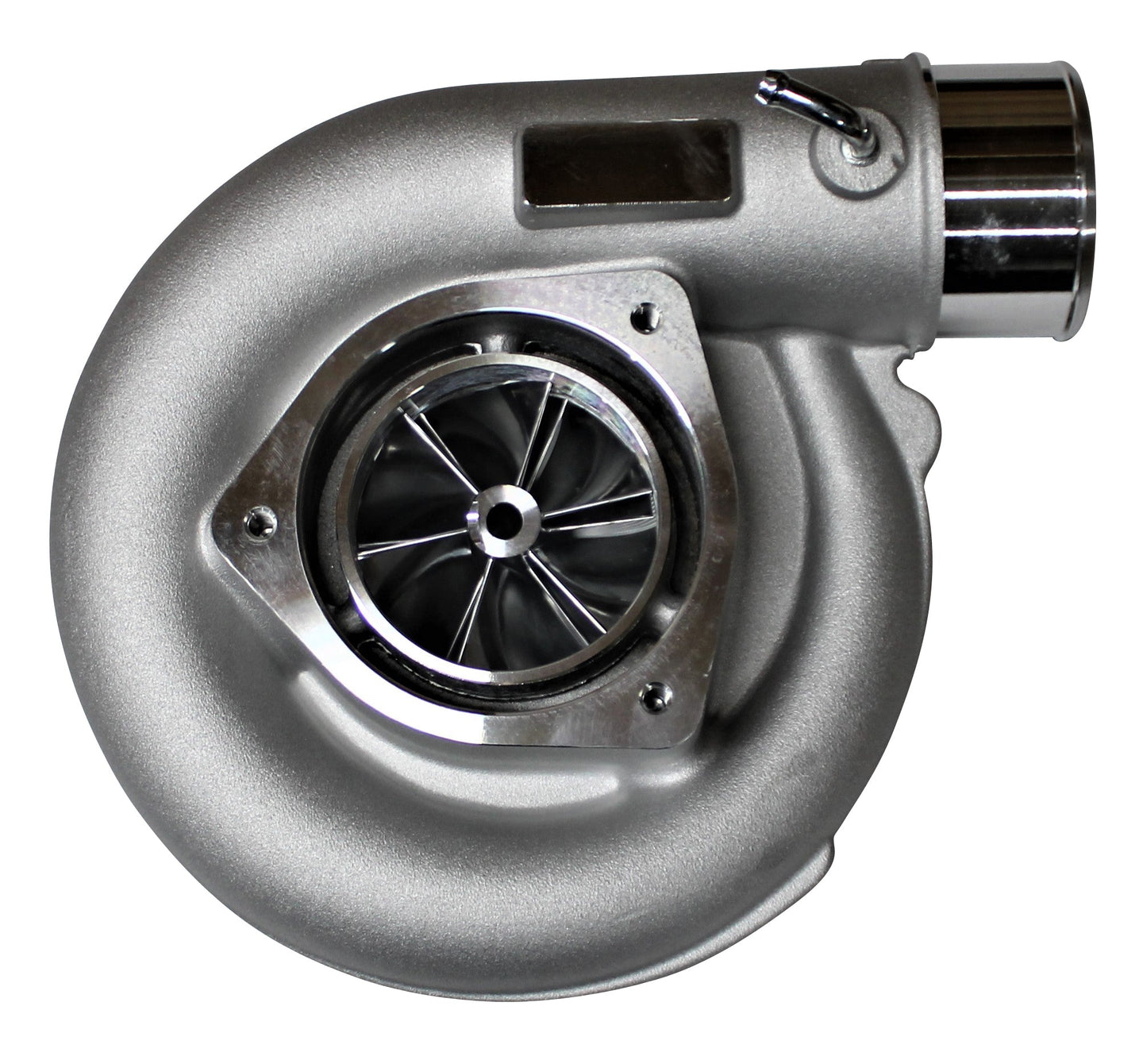

Extended Tip Billet Compressor Wheel and front cover kit for 2001-2004 Chevy GMC Duramax 6.6l LB7

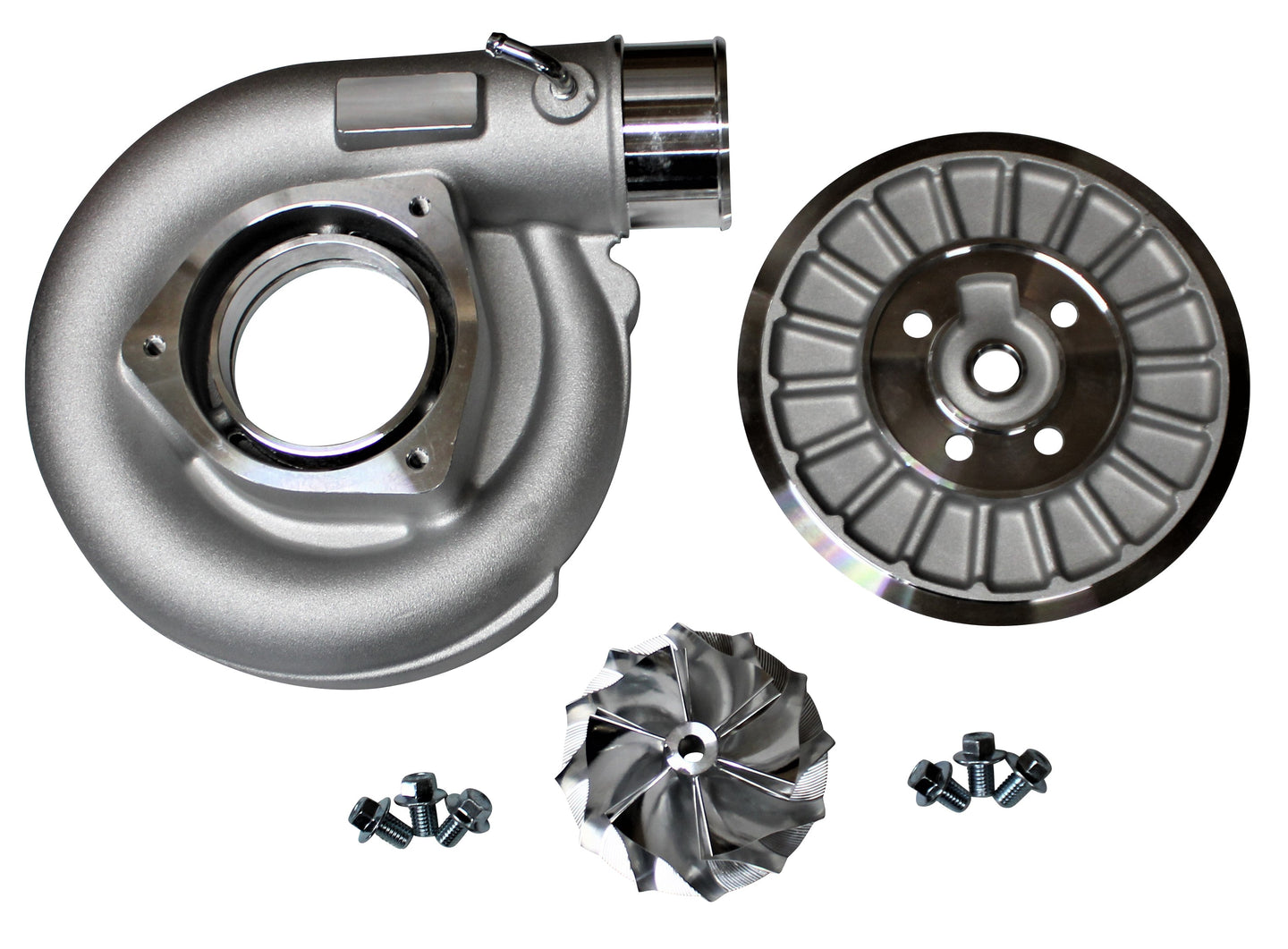

Includes:
1x 63.5mm Front Cover
1x 63.5mm Billet Compressor Wheel
1x Compressor Backing Plate
6x Front Cover Bolts
Billet Compressor Specs
Inducer: 63.5 mm
Exducer Base: 82.05 mm
Extended Tip: 87.35 mm
Primary Tip Height: 41 mm
Secondary Tip Height: 30 mm
Weight: 116.1 Grams
Nose Width: 15.7 mm
Blades: 6/6
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response
Fits: IHI RHG6 Turbos found in 2001-2004 6.6l LB7 Duramax Chevy/GMC applications
We strongly suggest fully rebuilding your turbo (new seals, bearings, oil supply & drain tubes) while you have it out. We only offer warranties on our full rebuild kits.
Install Tips:
The compressor wheel nut is LH thread.
Compressor Wheel Torque Spec: 170 in-lbs with blue thread locker
Backing Plate & Front Cover 144 in-lbs with blue thread locker
KB Diesel Performance LLC
63.5mm Front Cover Kit for IHI RHG6 Turbo 2001-2004 6.6l LB7 Chevy GMC
- Regular price
- $340.95
Extended Tip Billet Compressor Wheel and front cover kit for 2001-2004 Chevy GMC Duramax 6.6l LB7
Includes:
1x 63.5mm Front Cover
1x 63.5mm Billet Compressor Wheel
1x Compressor Backing Plate
6x Front Cover Bolts
Billet Compressor Specs
Inducer: 63.5 mm
Exducer Base: 82.05 mm
Extended Tip: 87.35 mm
Primary Tip Height: 41 mm
Secondary Tip Height: 30 mm
Weight: 116.1 Grams
Nose Width: 15.7 mm
Blades: 6/6
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response
Fits: IHI RHG6 Turbos found in 2001-2004 6.6l LB7 Duramax Chevy/GMC applications
We strongly suggest fully rebuilding your turbo (new seals, bearings, oil supply & drain tubes) while you have it out. We only offer warranties on our full rebuild kits.
Install Tips:
The compressor wheel nut is LH thread.
Compressor Wheel Torque Spec: 170 in-lbs with blue thread locker
Backing Plate & Front Cover 144 in-lbs with blue thread locker
- Regular price
- $340.95
