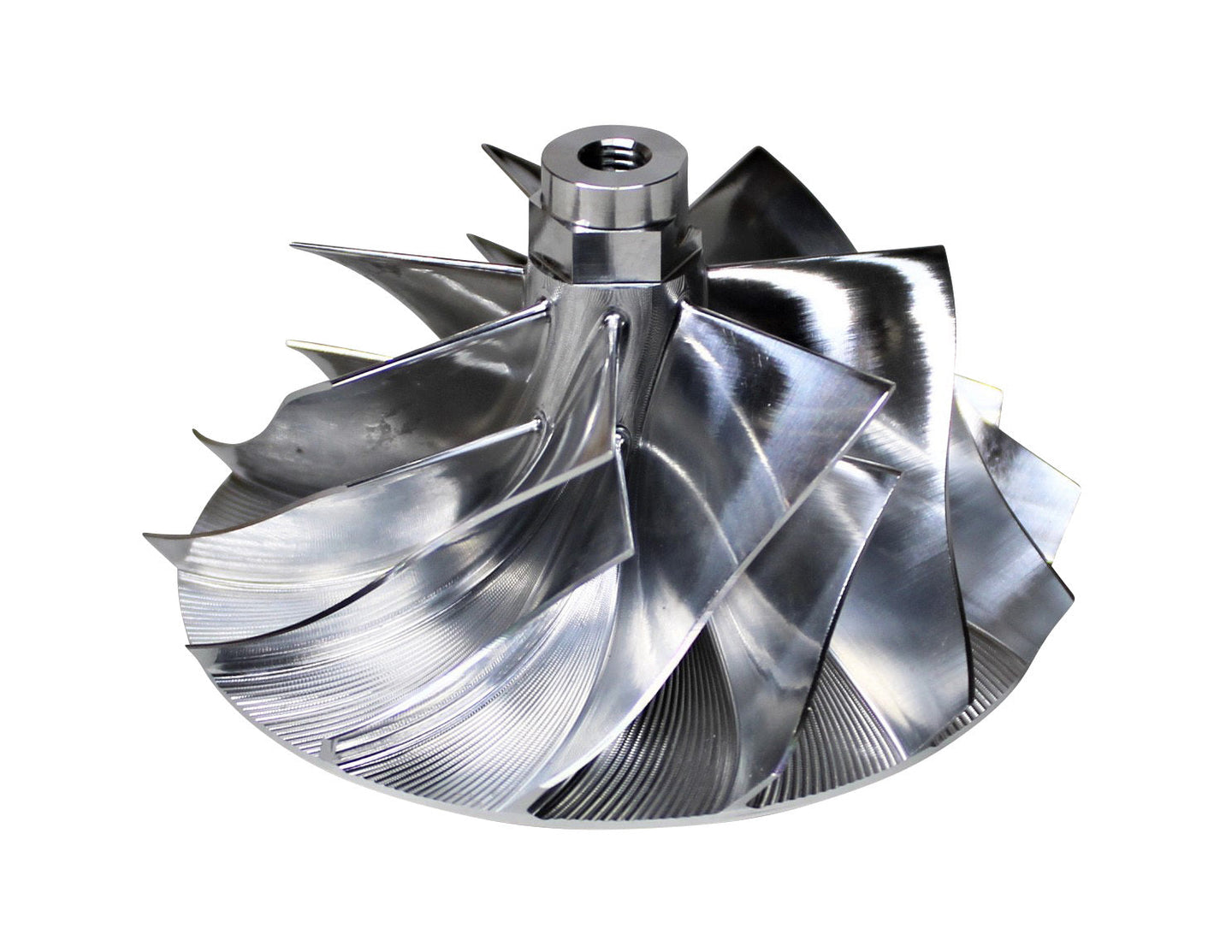

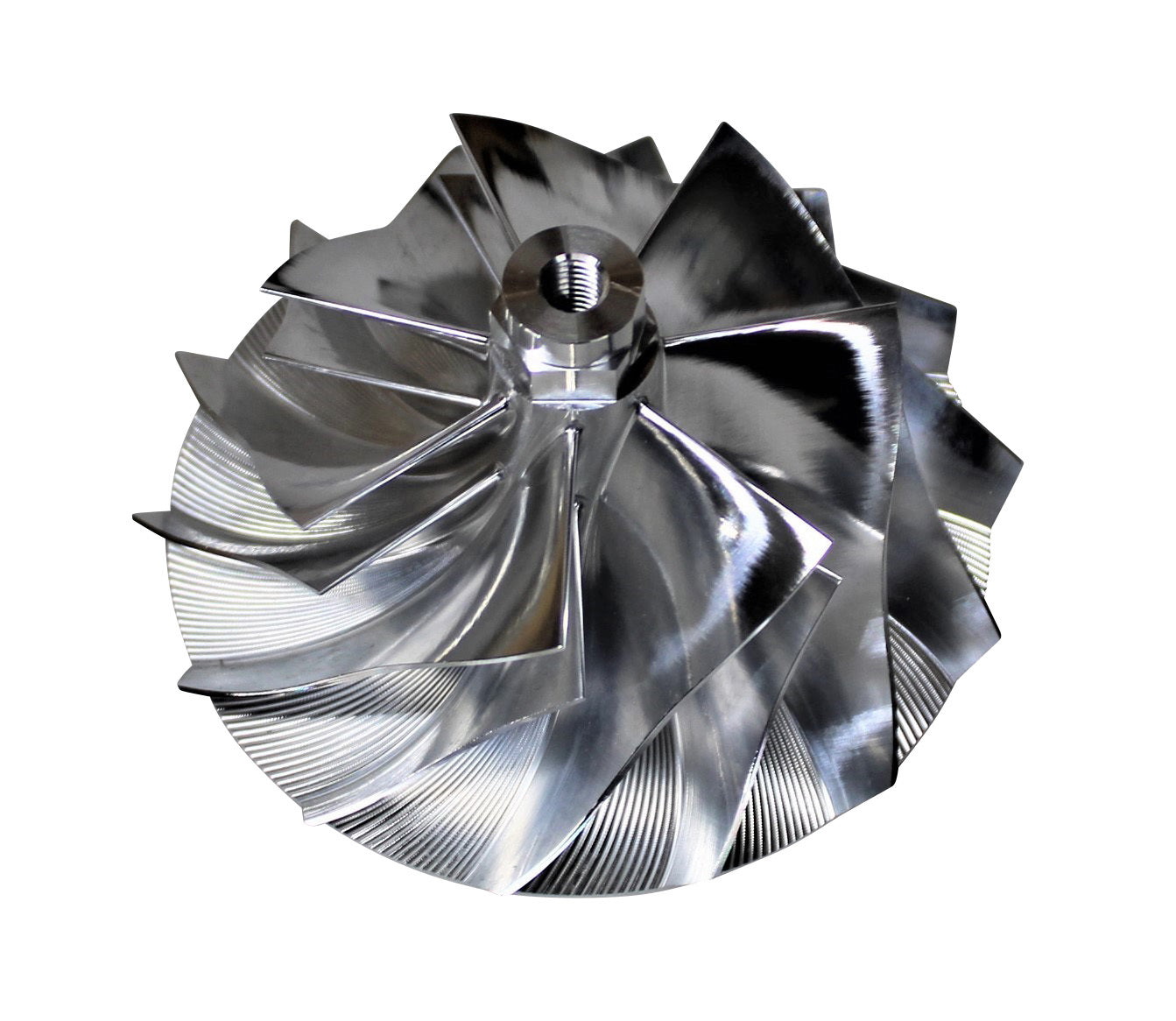

Extended Tip Billet Compressor Wheel for 1994-2003 Ford 7.3l Powerstroke

Billet Compressor Specs:

Inducer: 59.87 mm
Exducer Base: 80.07 mm
Extended Tip: 86.22 mm
Primary Tip Height: 30.5 mm
Secondary Tip Height: 22 mm
Weight: 108 Grams
Nose Width: 13 mm Hex
Blades: 7/7

Billet Compressor Features:
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response

This 7/7 compressor wheel was selected for best all-around performance. The 7/7 design will produce more turbo whistle when compared to the stock design. When building a turbo there is never a perfect choice for the compressor wheel. If the turbo must have extremely fast spooling characteristics we would recommend a 11/0 blade configuration. On the other hand if the turbo must have optimum performance at high engine/turbo rpms we would recommend fewer blades such as a 4/4 blade configuration. This is because at higher rpms more primary blades tend to get in the way rather than pulling in more air.

Note: The threads on the compressor wheel are left hand. Turn left to tighten and right to loosen. Torque specification: 10 Ft-Lbs with blue thread locker.

Fits: 1994.5-2003 Ford 7.3l Powerstroke with GTP38 or TP38 Turbos.
