Case Drain Kit for B series and C series CAT Skid Loaders / Track Loaders. Can be used on other brands - see details below.

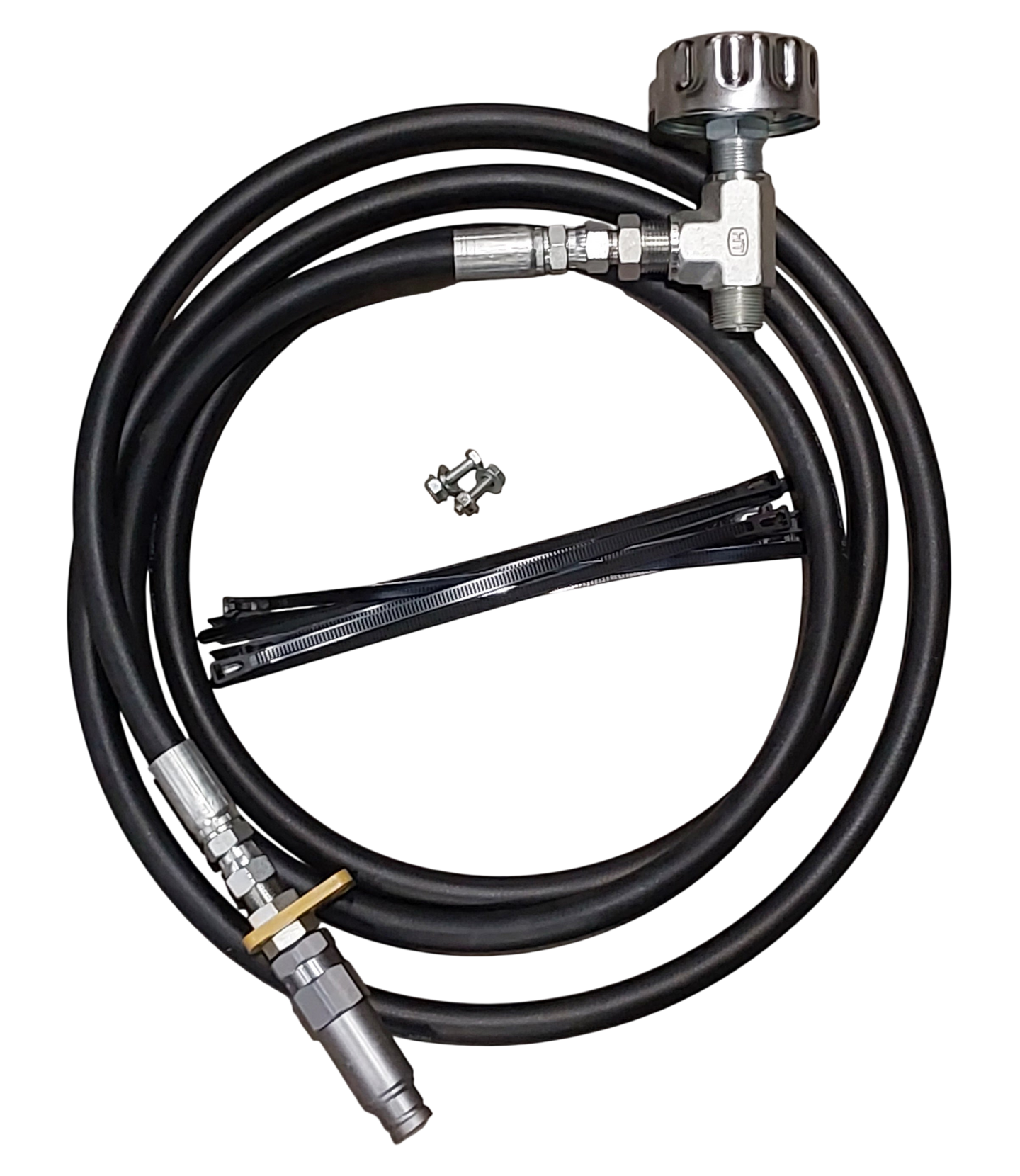

  • Includes:
  • 1x Hose

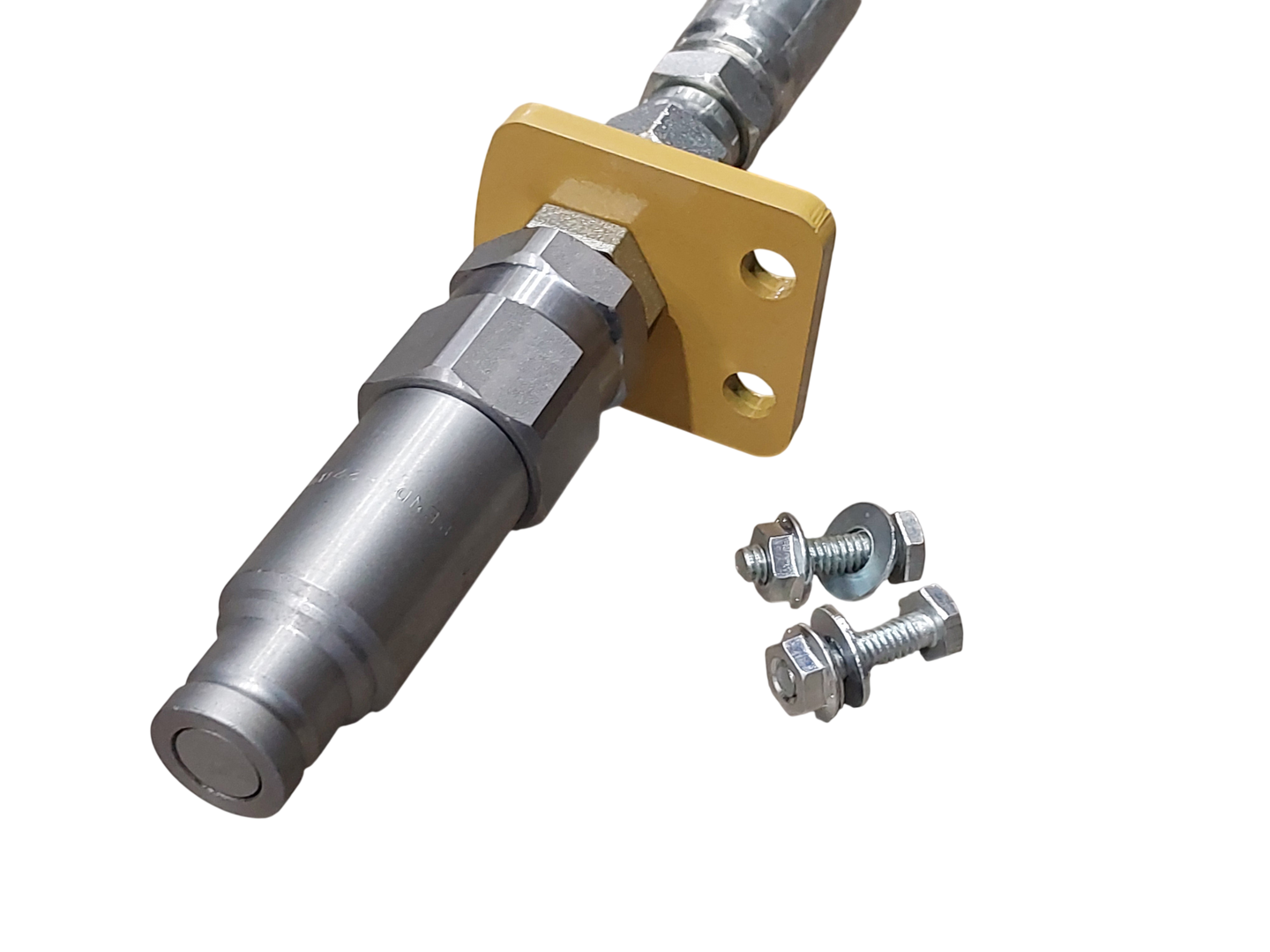

  • 1x Mounting Bracket
  • 1X Bulkhead Fitting (for bracket mount)
  • 1x Flat Face Coupler
  • 2x Bolts & Nuts (M8X25)

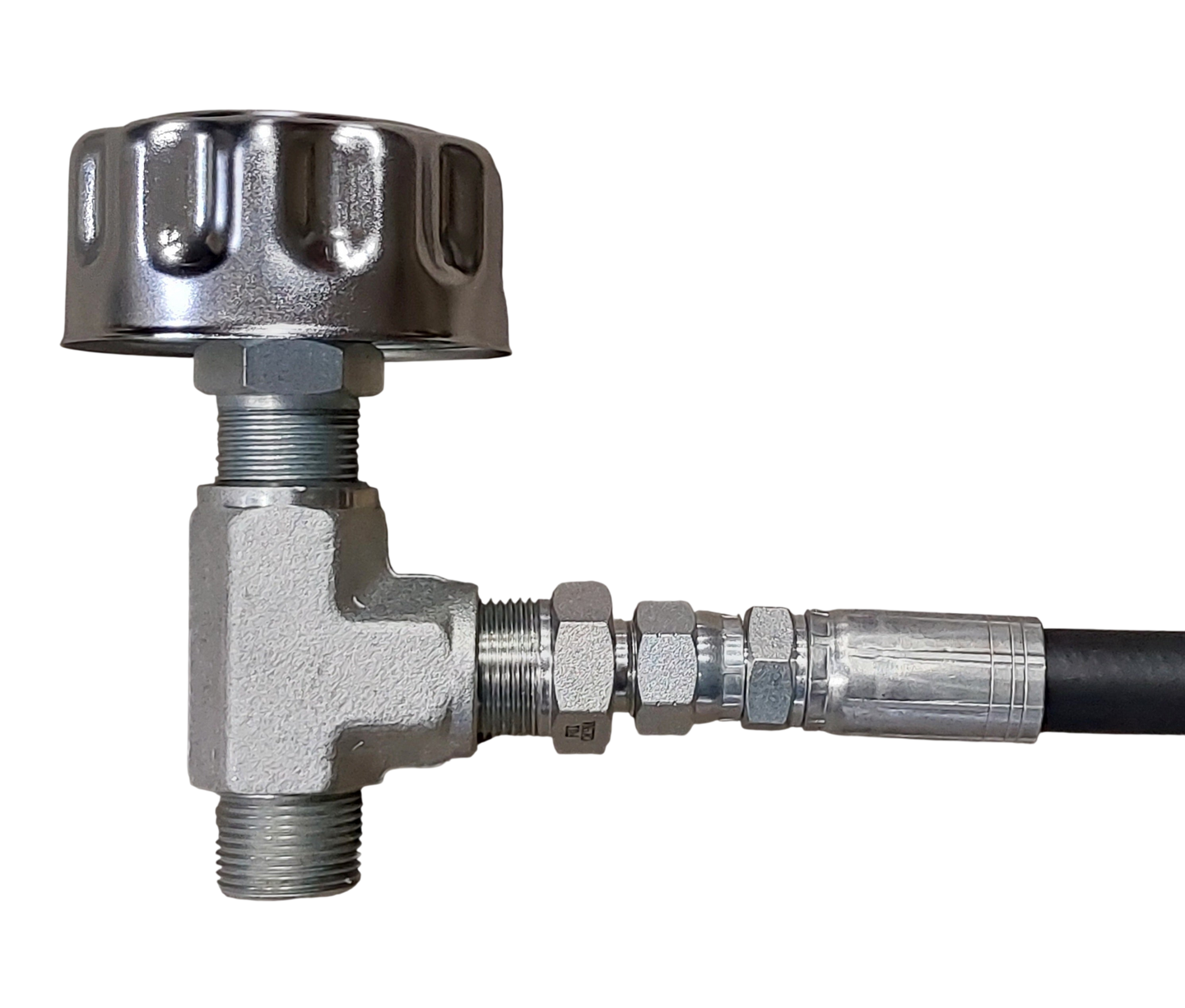

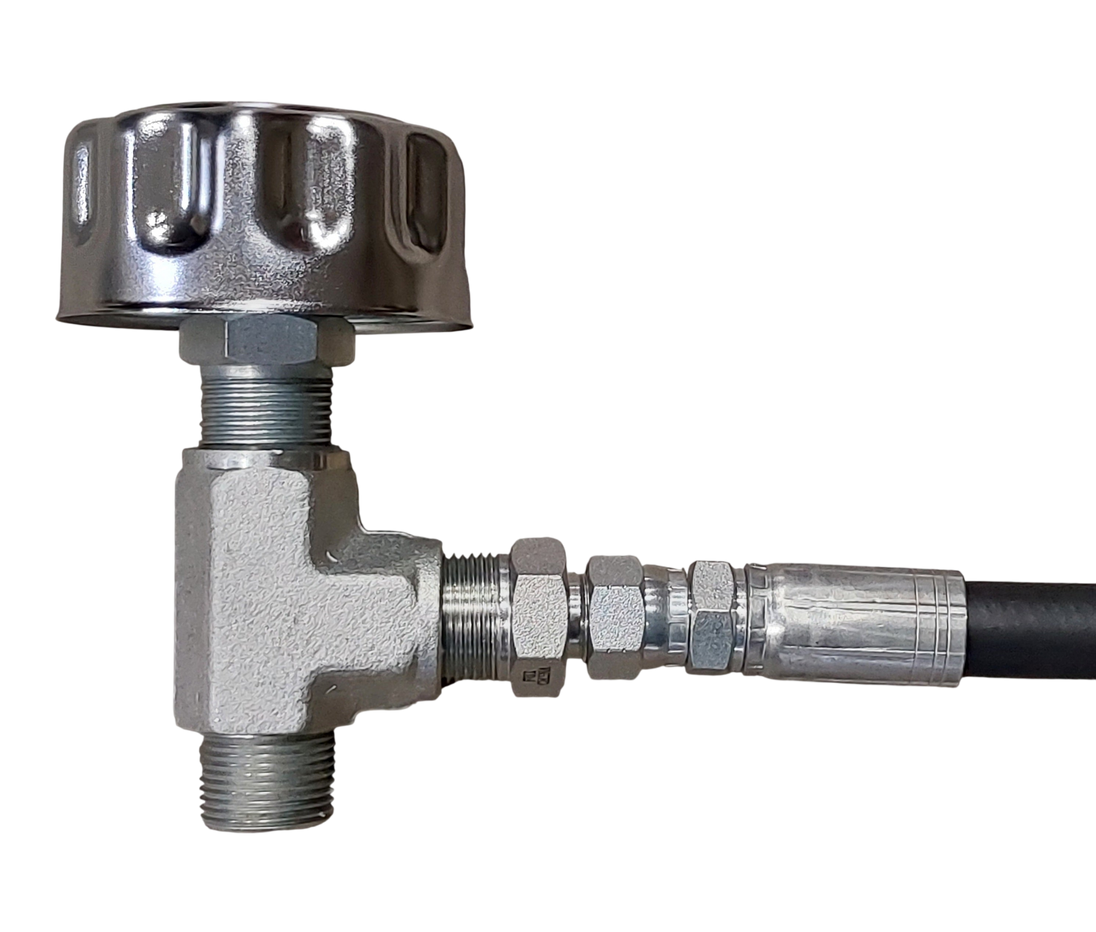

  • 1x Tee Fitting
  • 1x Adapter Fitting
  • 1x Hydraulic Vent
  • 10x Zip Ties
  • 1x 90° bulkhead fitting

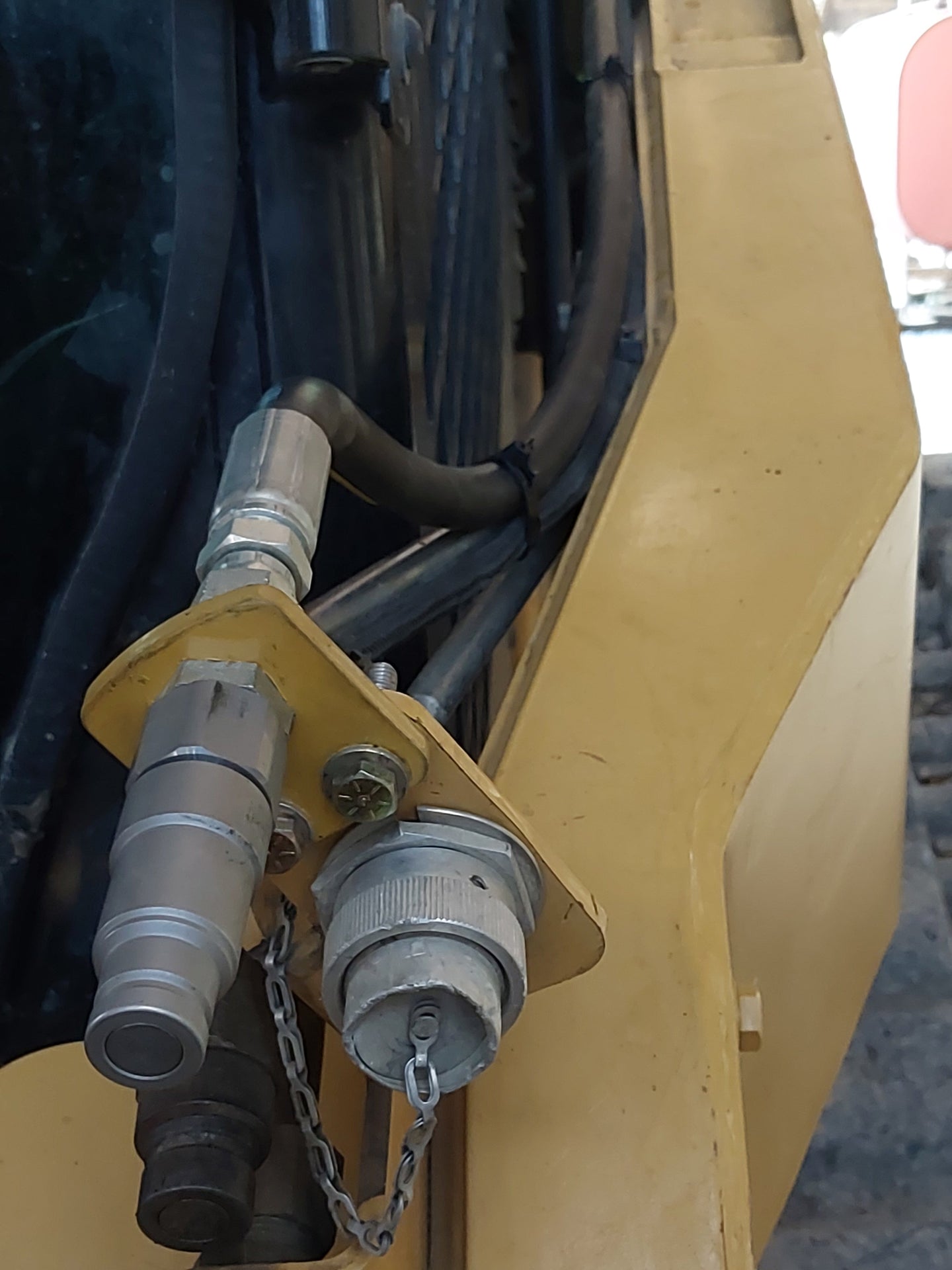

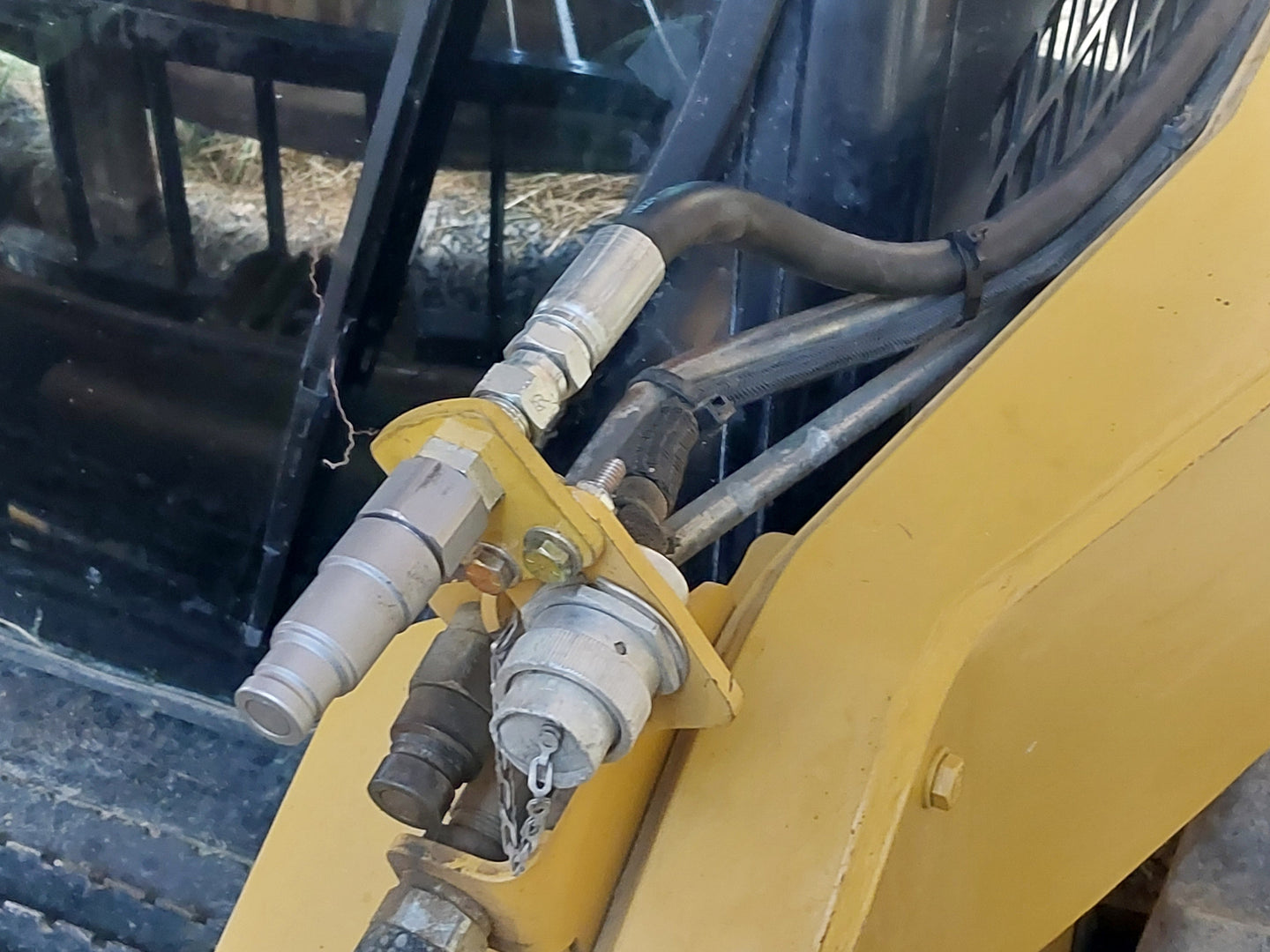

Bolts to loader arm bracket

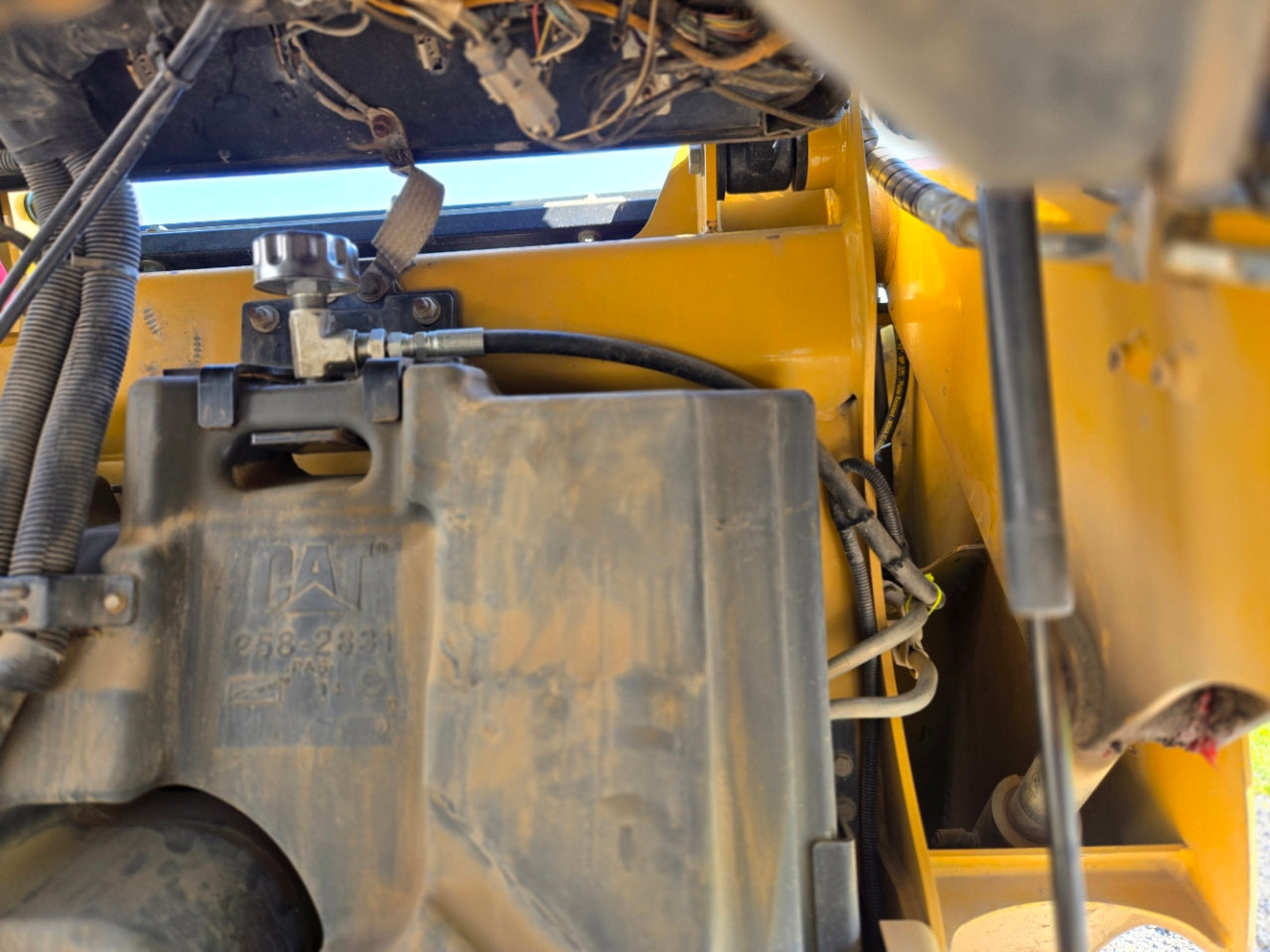

Tees into top of hydraulic tank vent location (C-series only)

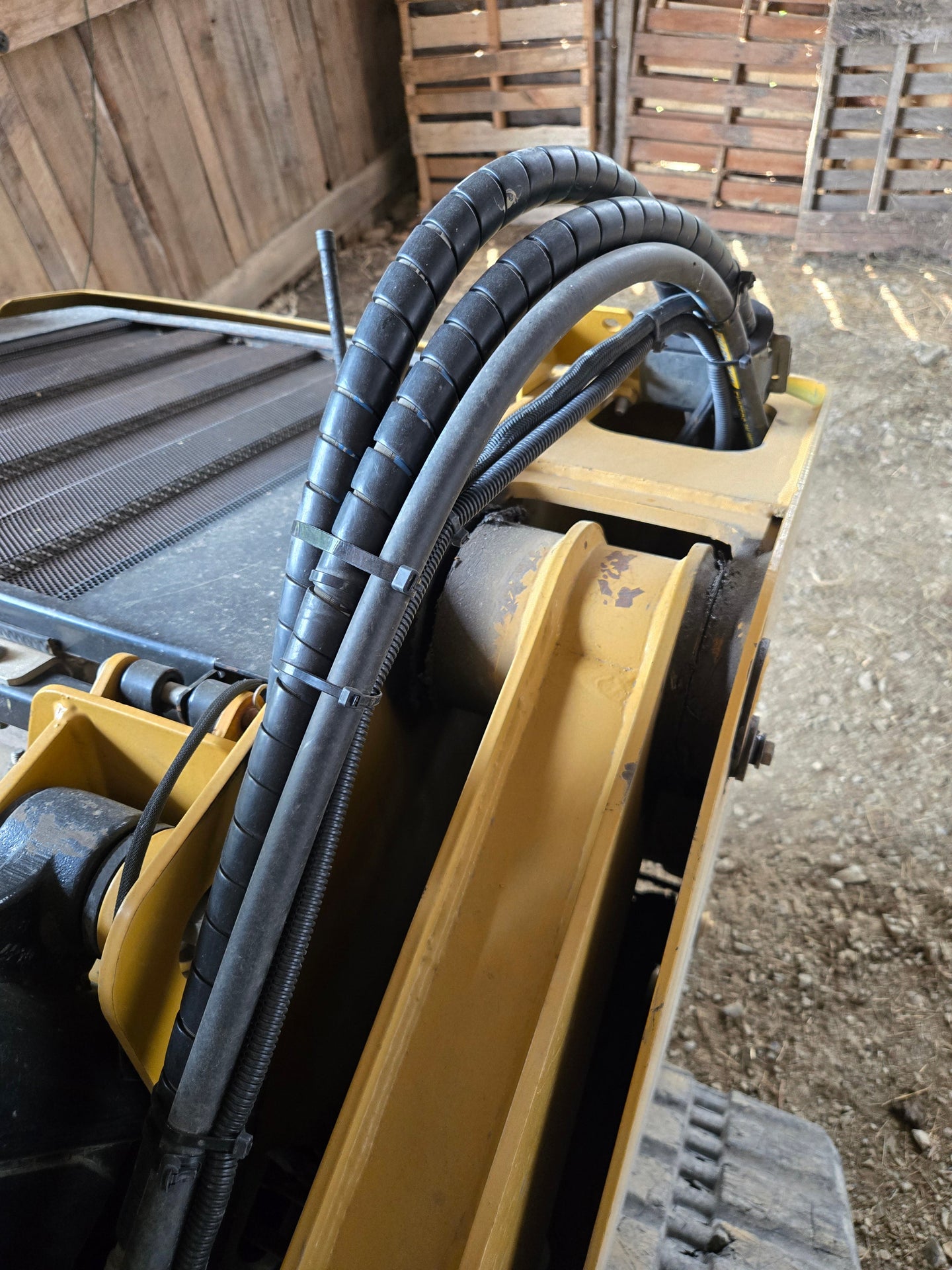

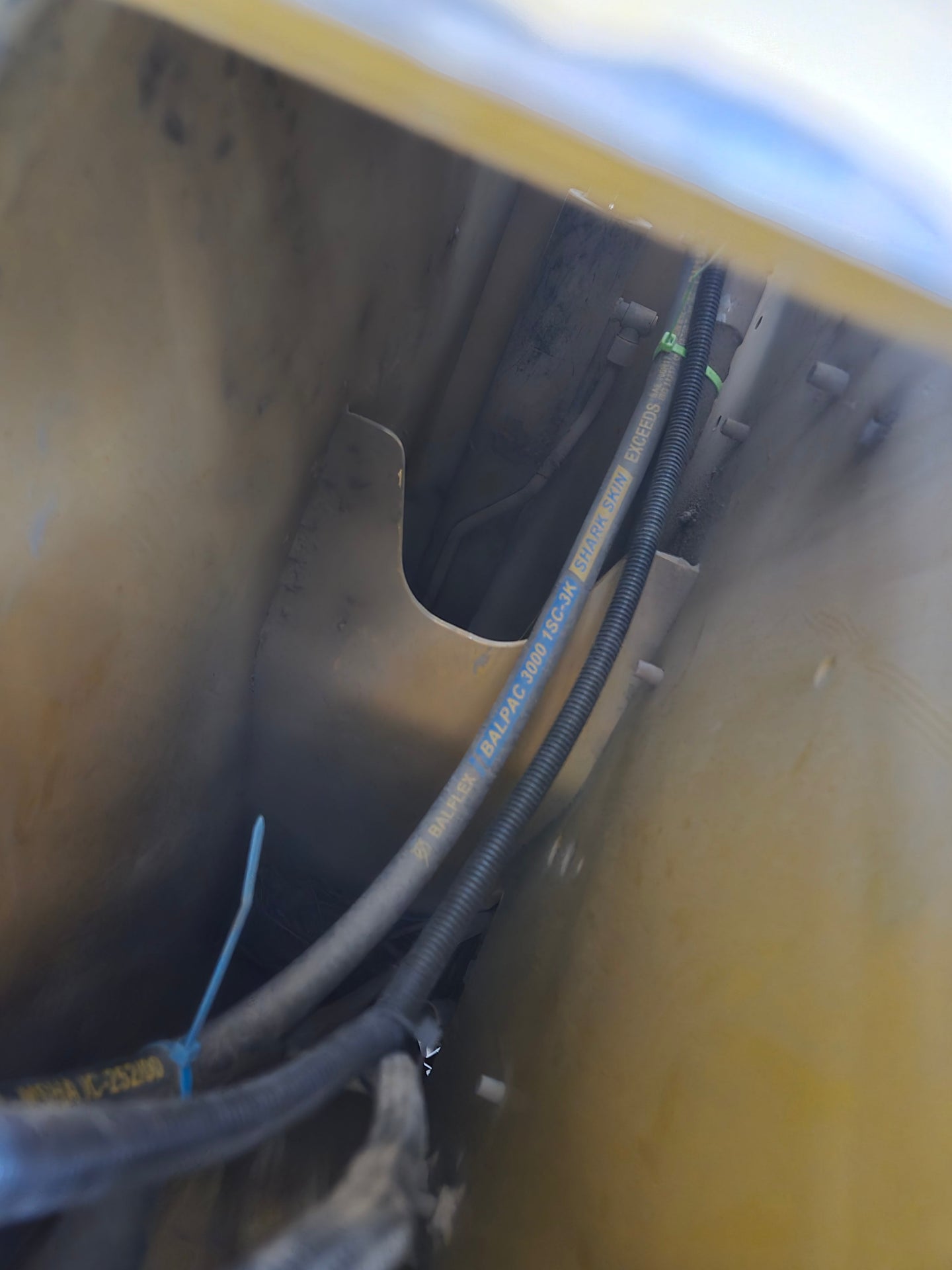

Hose routes up over loader arm alongside other hydraulic lines

*Note for Vertical Lift: Hose length is for radial lift machines. Vertical lift machines may require a 3ft hose extension.

*Note B Series: Requires drilling to install 90° bulkhead fitting. B Series machines have 2-3 styles of tanks. The included breather will not fit the top of the tank on a B-series.

*Note C Series: Routes as pictured and dumps into the top of the tank at the breather location.

*Note All other Machines (Bobcat, Takeuchi, Case, John Deere, Kubota etc.): This case drain kit can be used on these machines. Mounting set up on the boom may vary along with tank connections. So far customers have provided feedback that they have used this kit on Bobcat, Takeuchi & Case machines with minor differences.
