Complete Turbo Rebuild Kit for 6.6l L5P Borg Warner turbos.

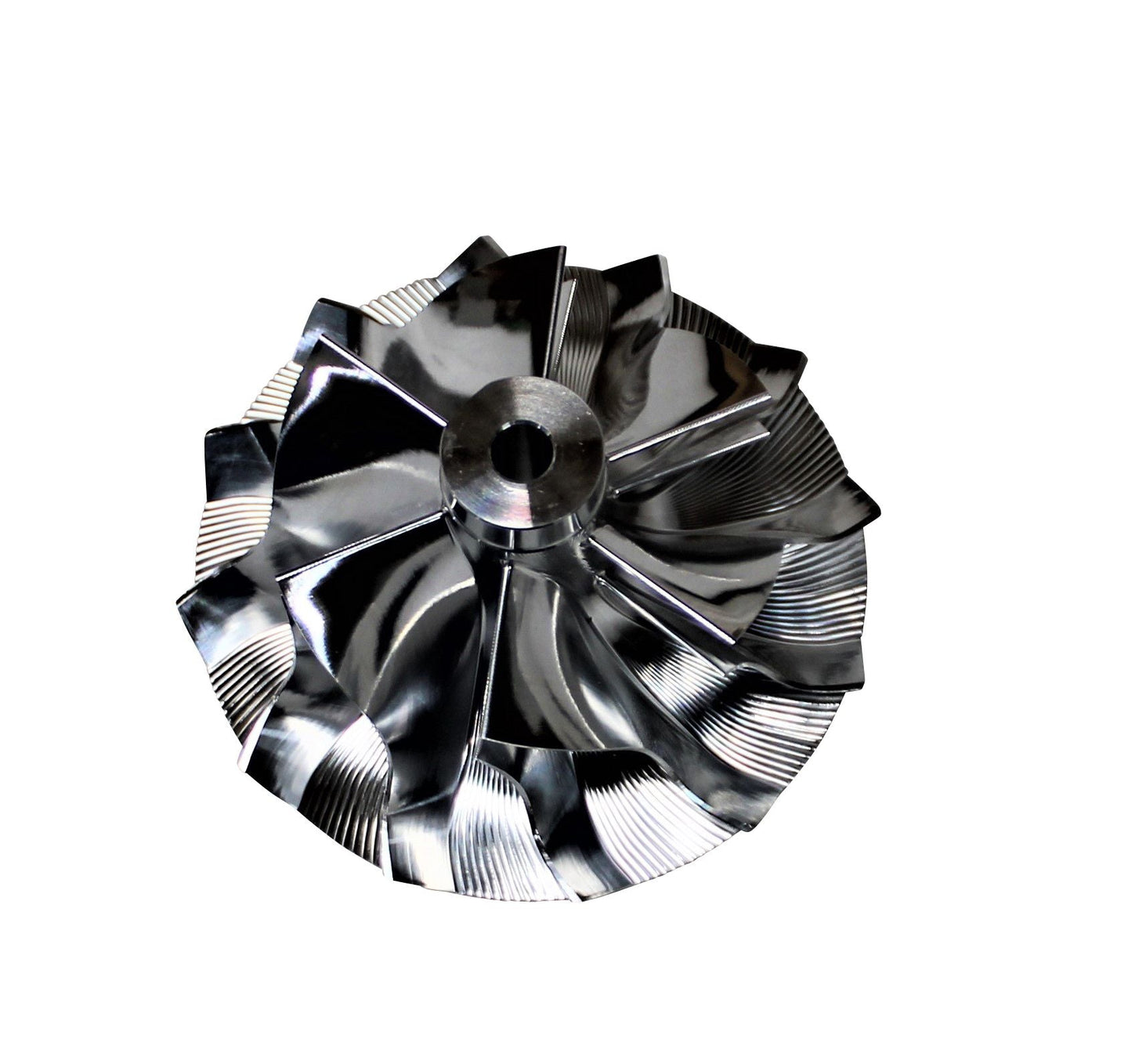

61.2mm Billet Compressor Specs
Inducer: 61.2 mm
Exducer Base: 84.0 mm
Extended Tip: 87.88 mm
Primary Tip Height: 38 mm
Secondary Tip Height: 25 mm
Weight: 129.8 Grams
Nose Width: 18.6 mm
Blades: 6/6
Extended Tip
63.5mm Billet Compressor Specs:
Inducer: 63.5 mm
Exducer Base: 84.0 mm
Extended Tip: 87.88 mm
Primary Tip Height: 38 mm
Secondary Tip Height: 25 mm
Nose Width: 18.6 mm
Blades: 6/6
Extended Tip
Pre-balanced
Turbine Wheel Specs:
Measures 70mm x 62.6mm
9 OR 10 Blades
Pre Balanced

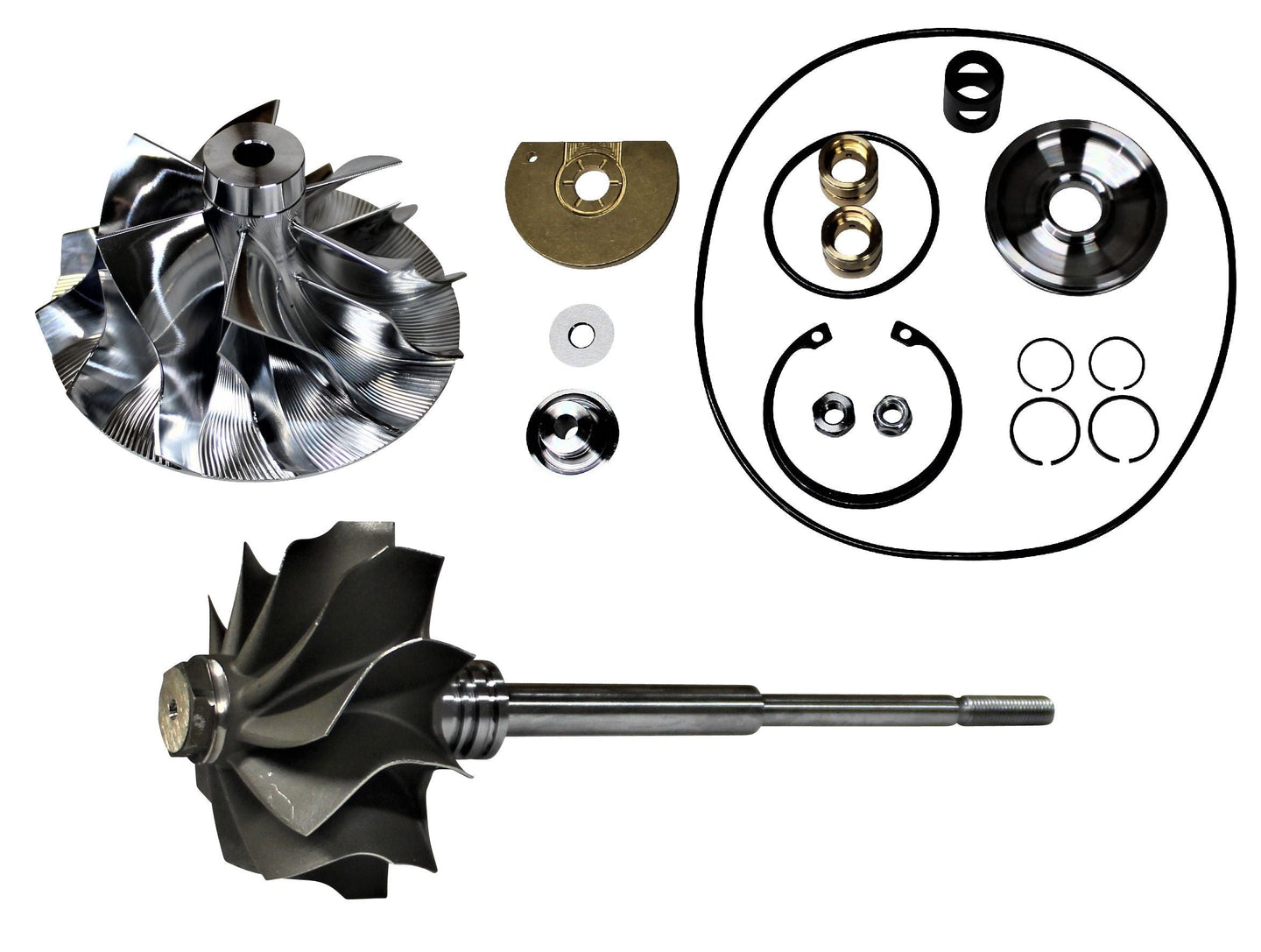

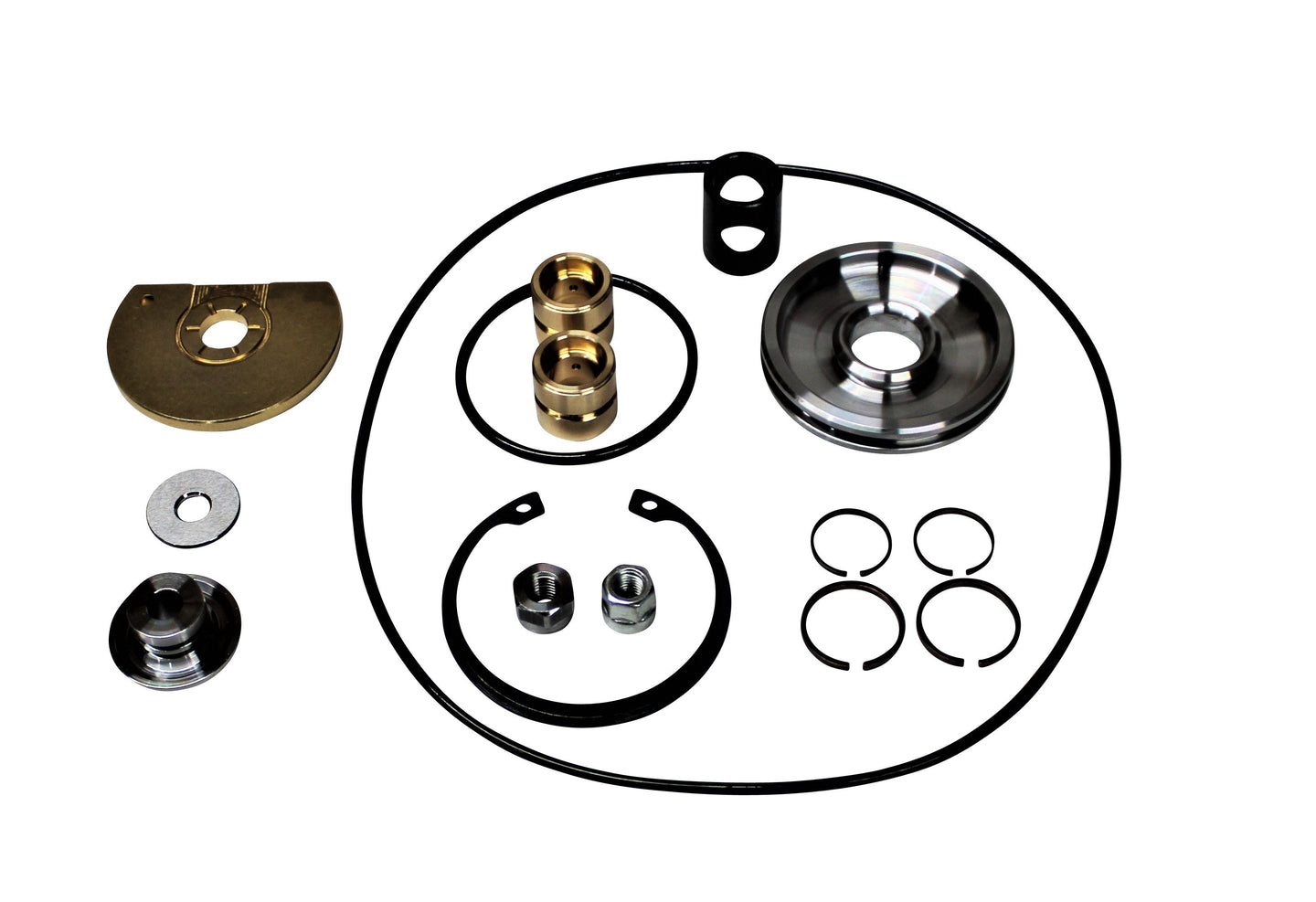

Rebuild Kit Includes:
360° Brass Thrust Bearing
Thrust Bearing Spacers
Journal Bearings
Journal Bearing Spacer
2x O-rings
C-Clip
Bearing Housing Cap
Compressor Side Seals
Turbine Side Seal
2x Nuts
KB Diesel Performance LLC
Complete Turbo Rebuild Kit for 2017-2023 L5P 6.6l Duramax
- Regular price
- $429.95
Complete Turbo Rebuild Kit for 6.6l L5P Borg Warner turbos.
61.2mm Billet Compressor Specs
Inducer: 61.2 mm
Exducer Base: 84.0 mm
Extended Tip: 87.88 mm
Primary Tip Height: 38 mm
Secondary Tip Height: 25 mm
Weight: 129.8 Grams
Nose Width: 18.6 mm
Blades: 6/6
Extended Tip
63.5mm Billet Compressor Specs:
Inducer: 63.5 mm
Exducer Base: 84.0 mm
Extended Tip: 87.88 mm
Primary Tip Height: 38 mm
Secondary Tip Height: 25 mm
Nose Width: 18.6 mm
Blades: 6/6
Extended Tip
Pre-balanced
Turbine Wheel Specs:
Measures 70mm x 62.6mm
9 OR 10 Blades
Pre Balanced
Rebuild Kit Includes:
360° Brass Thrust Bearing
Thrust Bearing Spacers
Journal Bearings
Journal Bearing Spacer
2x O-rings
C-Clip
Bearing Housing Cap
Compressor Side Seals
Turbine Side Seal
2x Nuts
- Regular price
- $429.95
