Turbo Kit for HE351VE HE300VG Turbos 6.7l Cummins

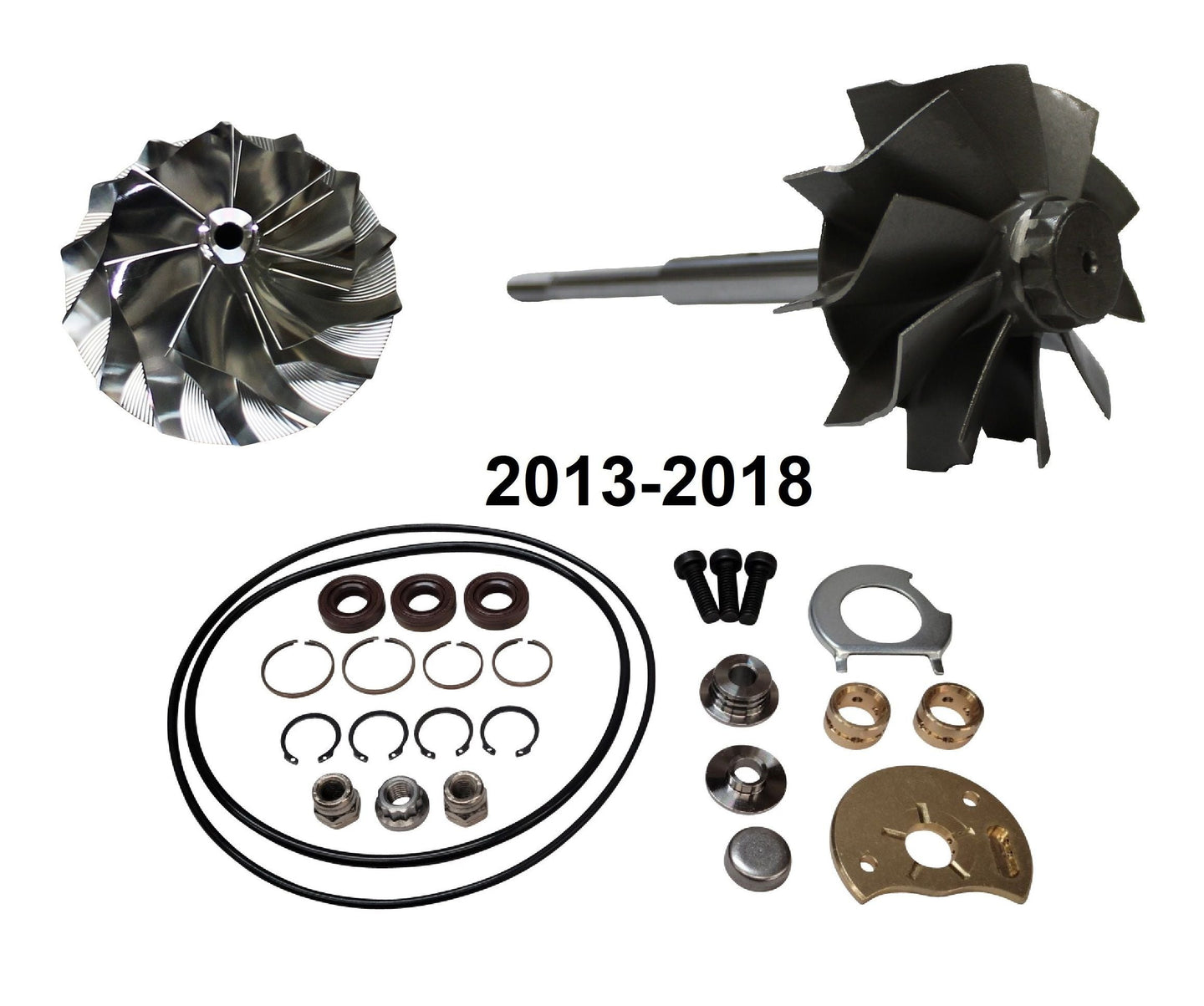

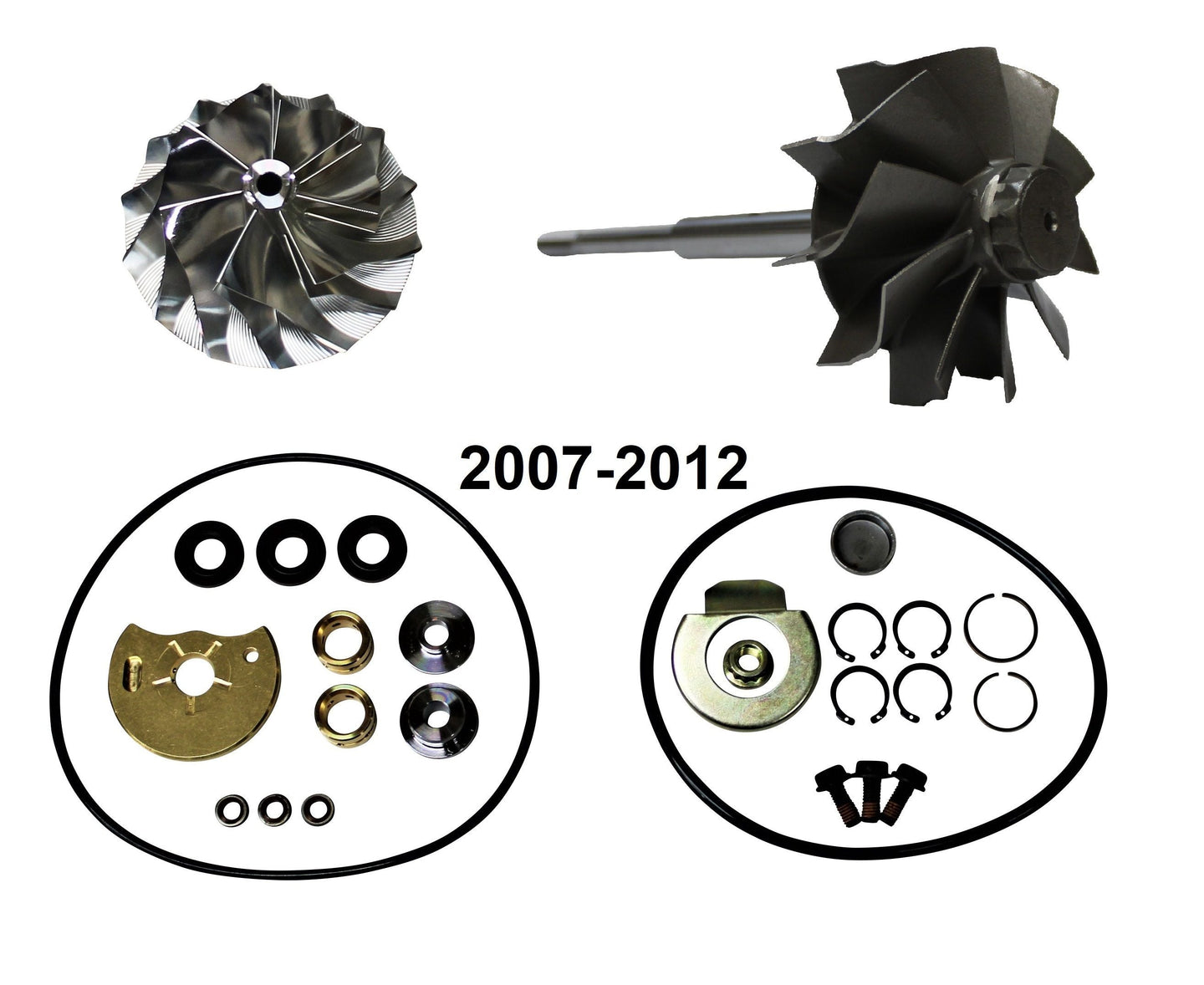

Includes:
Billet Compressor Wheel
Turbo Rebuild Kit
10 Blade Turbine Wheel

Turbo Rebuild Kit Specs:
2 - O-Rings
1 - 360° Thrust Bearing
1 - Thrust Bearing Collar
1 - Thrust Bearing Spacer
2 - Journal Bearings
2- "TS1" Oversized Bearings (HE351VE Kit only)
1 - 12 Point Compressor Wheel Nut
2 - Piston Oil seals
4 - C Clips
1 - Shield
1 - Freeze Plug
3 - Cap Screw Bolts
Rubber Oil Seals
Clamp Nuts

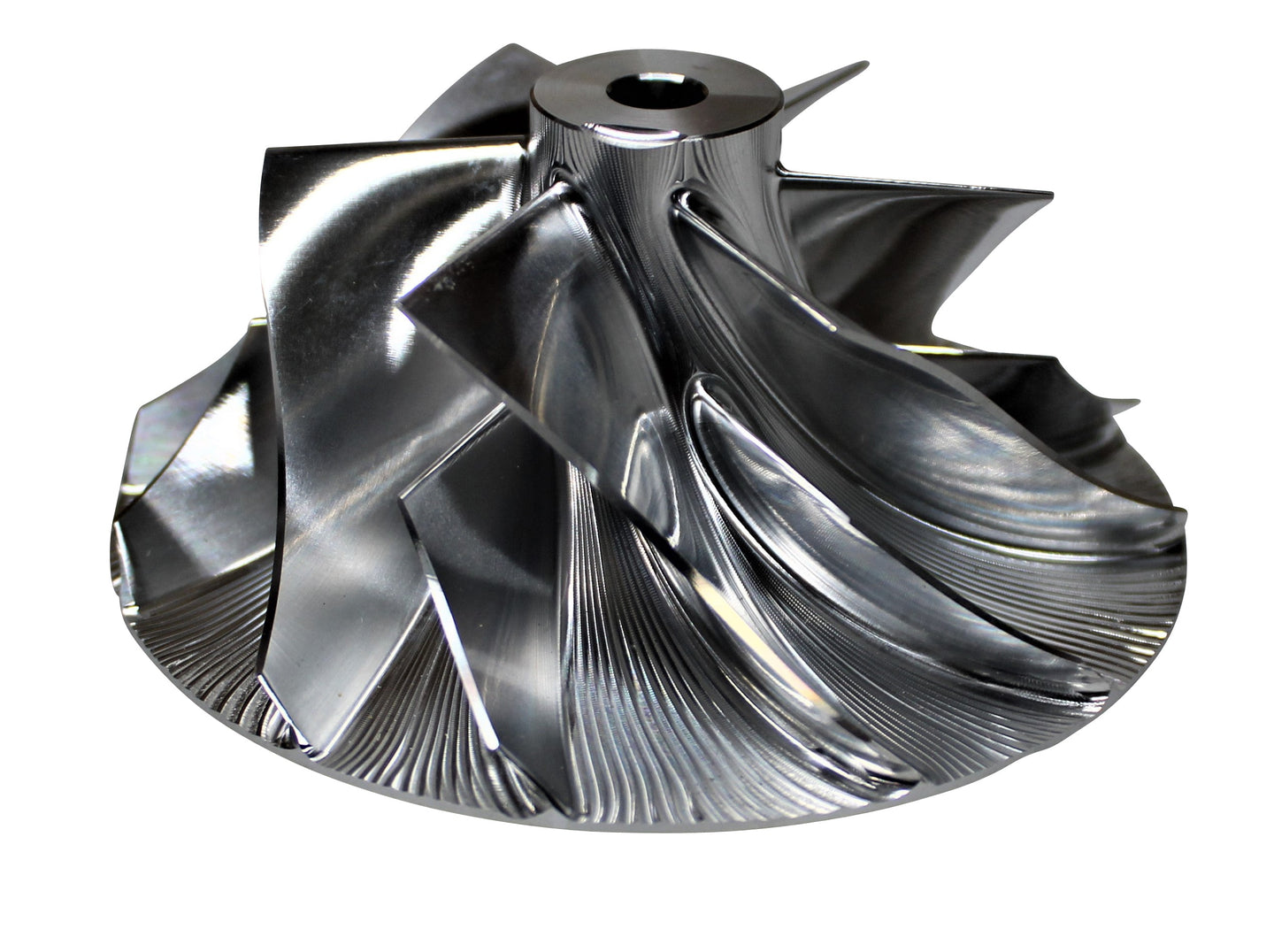

63mm Billet Compressor Specs:
Inducer: 63 mm
Exducer Base: 86 mm
Primary Tip Height: 39 mm
Secondary Tip Height: 28.5mm
Nose Width: 14.8 mm
Blades: 7/7

60mm Billet Compressor Specs
Inducer: 60 mm
Exducer Base: 86 mm
Primary Tip Height: 30.9 mm
Secondary Tip Height: 16.75 mm
Weight: 145.3 Grams
Nose Width: 18.8 mm
Blades: 6/6

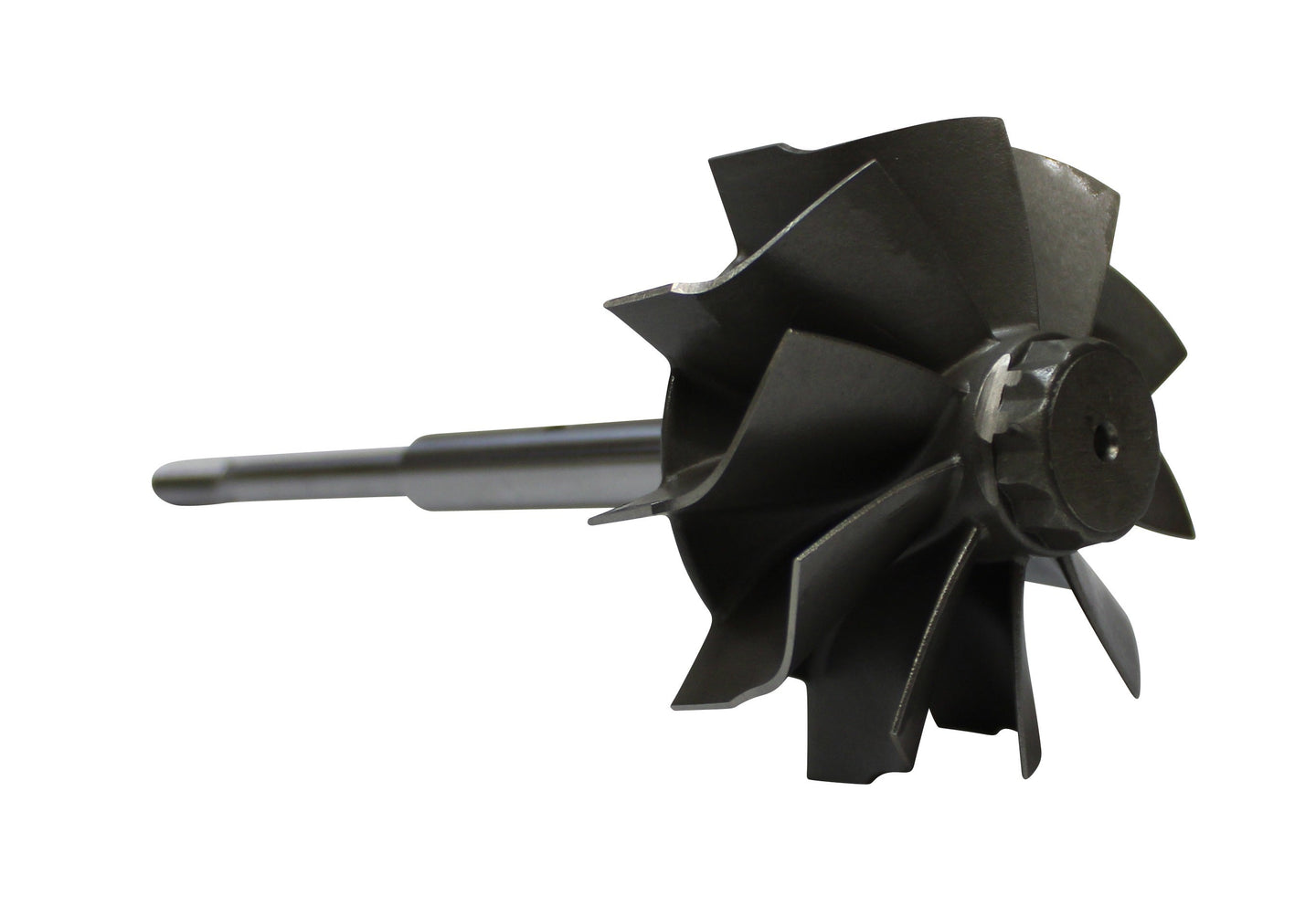

10 Blade Turbine Wheel Specs:
Drop in 10 Blade 60x70mm Turbine Wheel & Shaft
Upgraded 10 blade design
Lower EGTs
Increased flow

One Year Warranty Available, the following items will be required:
Receipts of oil supply & drain tubes replaced at time of rebuild
Balancing must be selected at time of purchase
Turbo fasteners must be torqued to specs

Fits: HE351VE HE300VG Turbos on 2007.5-2018 6.7l Cummins Diesel Applications.

Torque Specs:
HE351VE Backing/Seal Plate: 30 in-lbs
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
