Keep the cooling system clean of debris with our 6.7l coolant filtration kit!

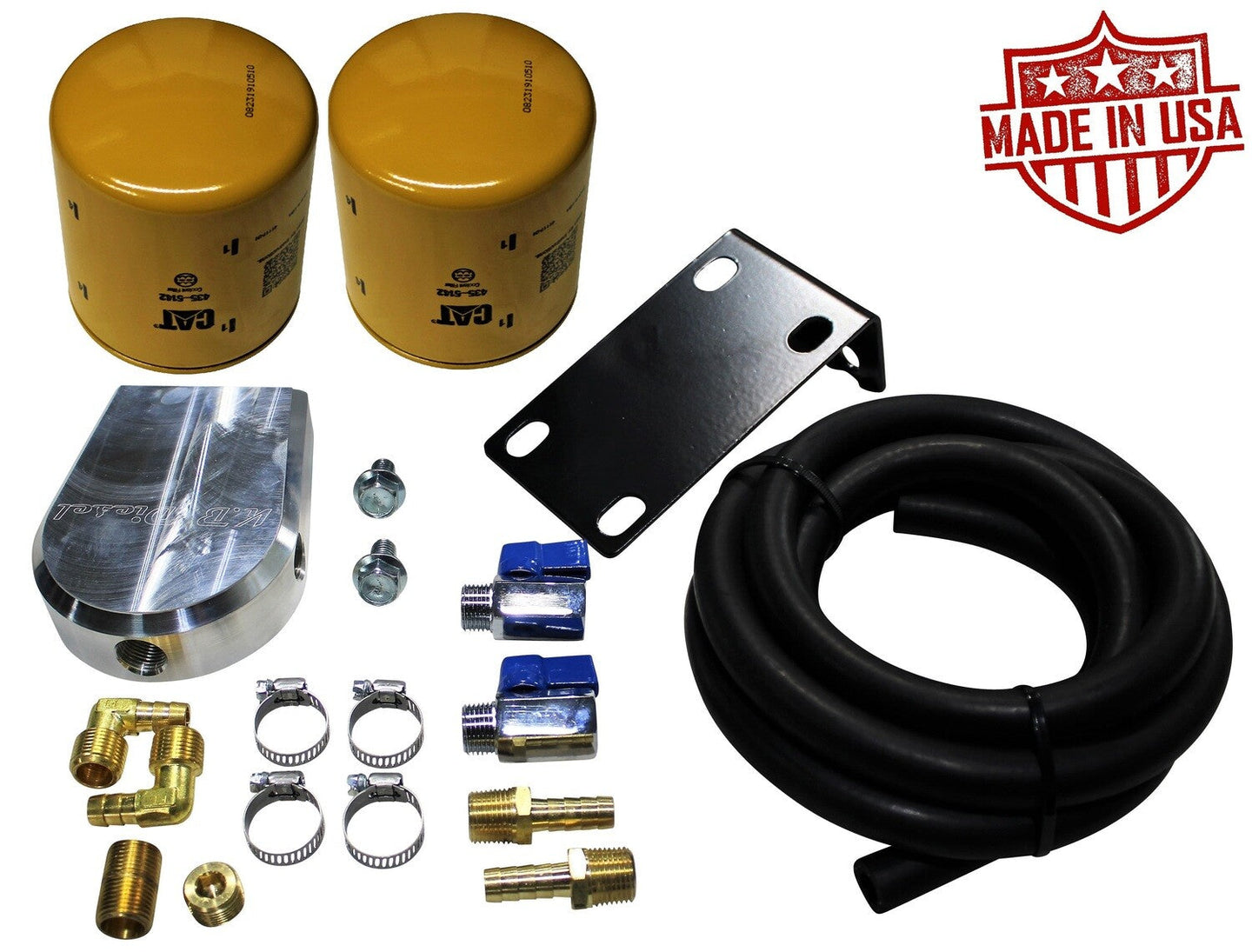

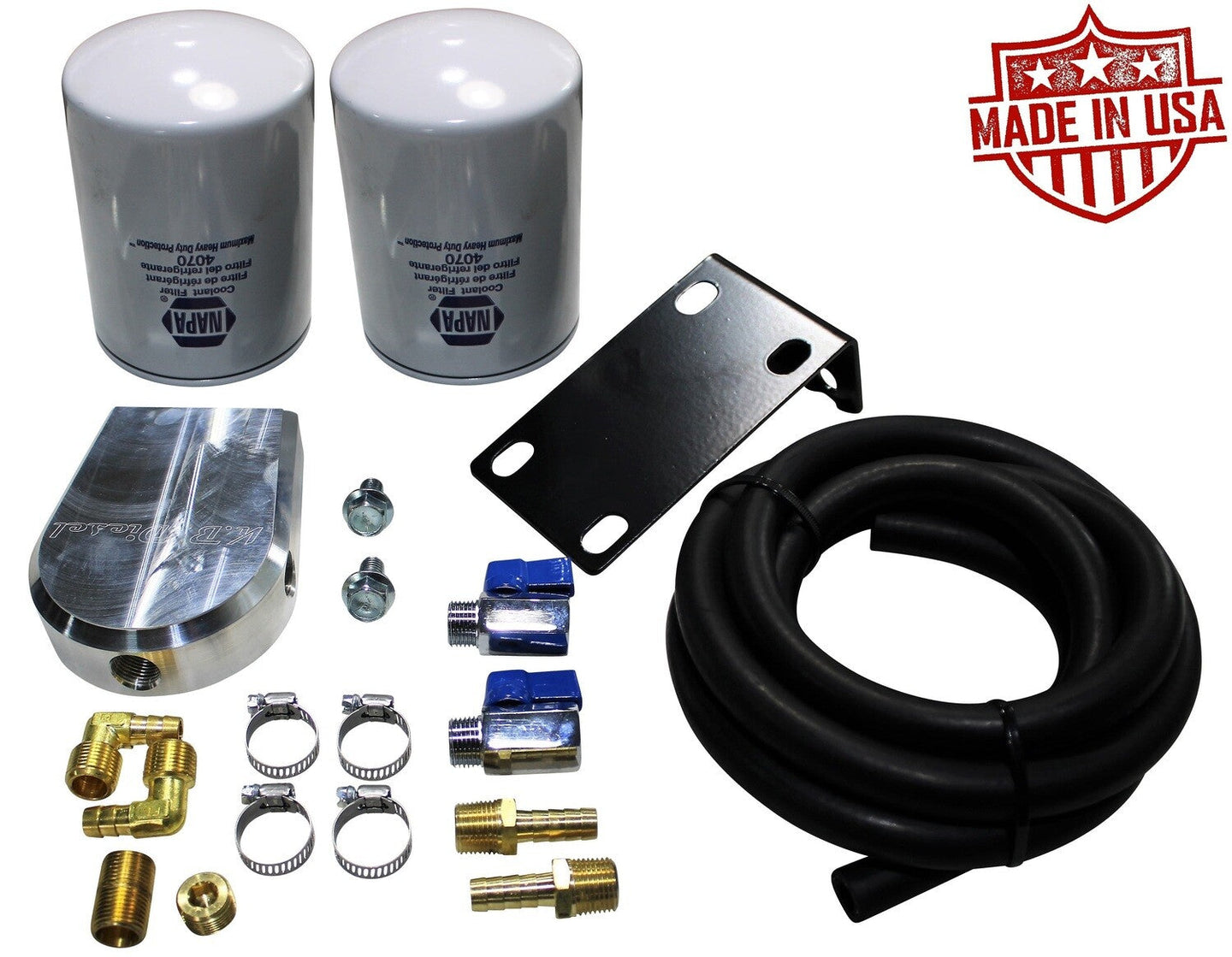

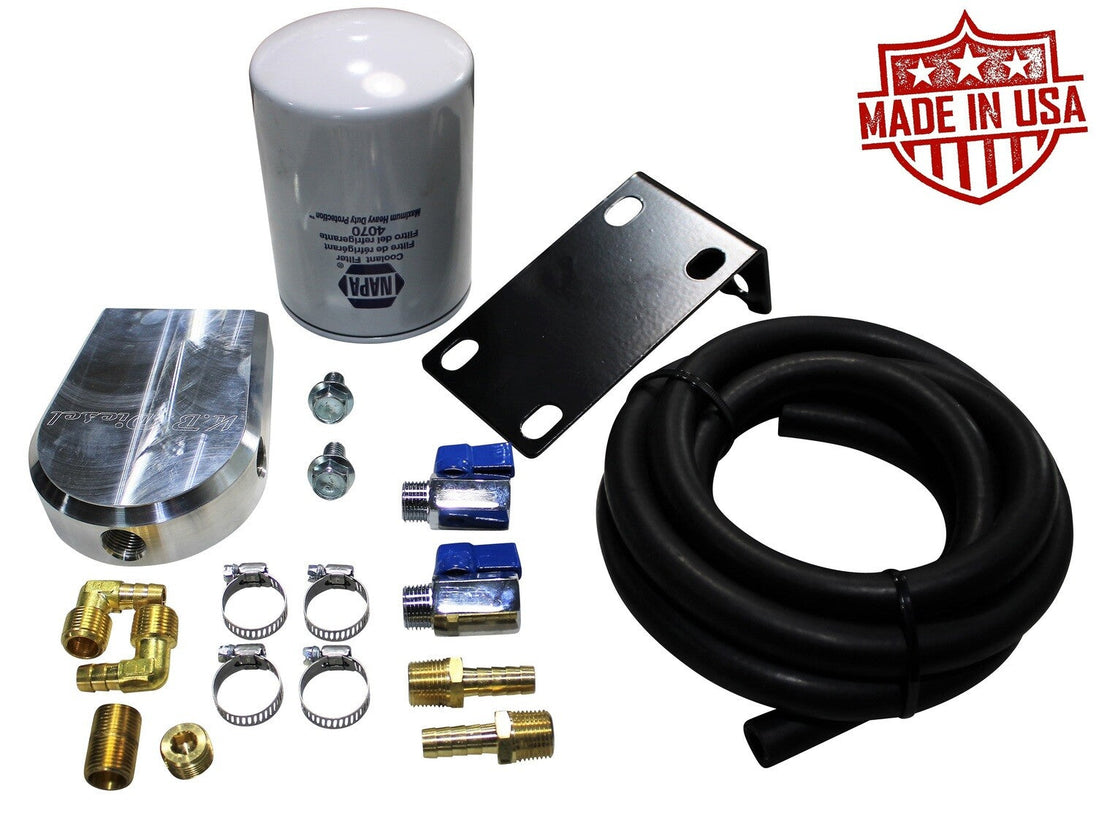

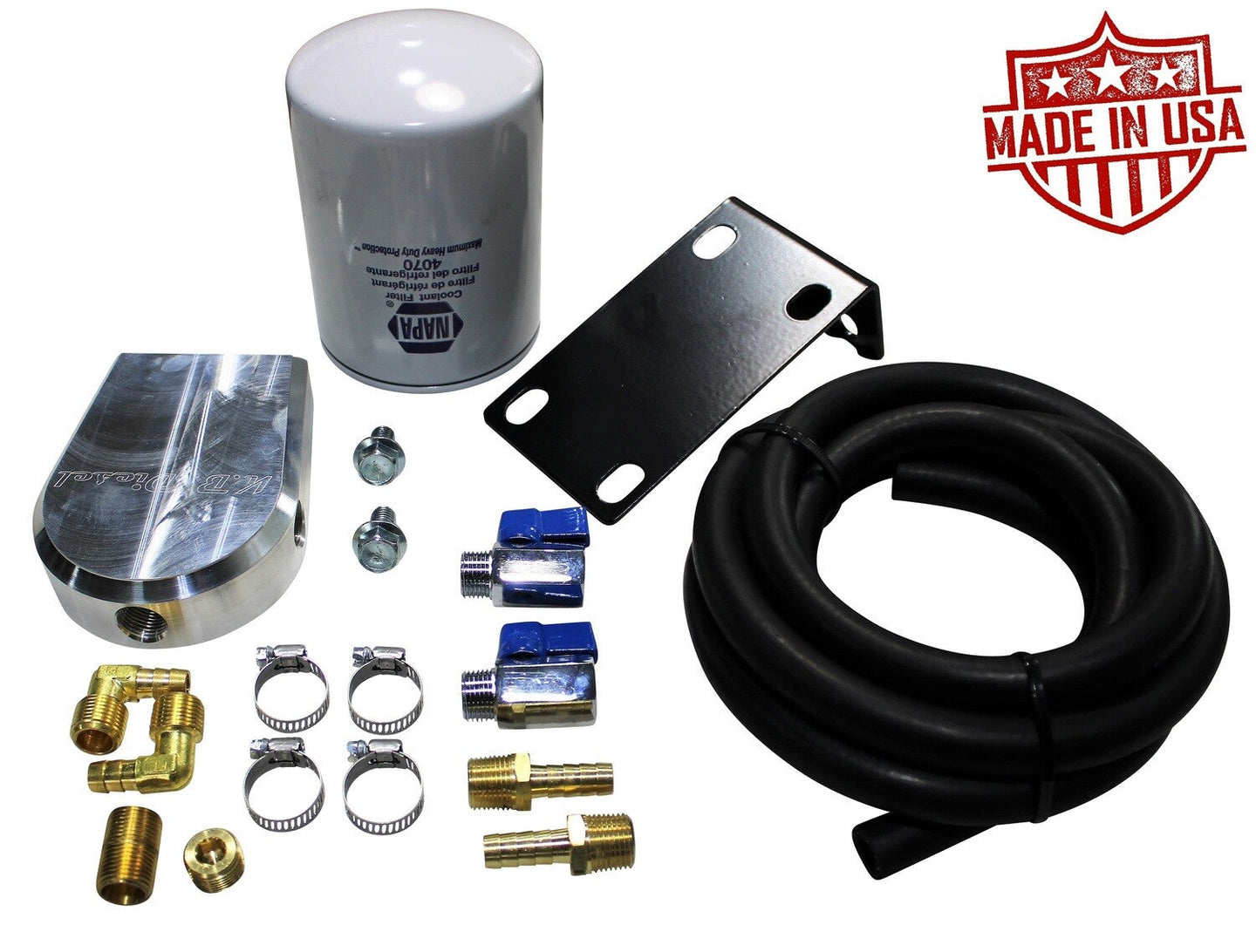

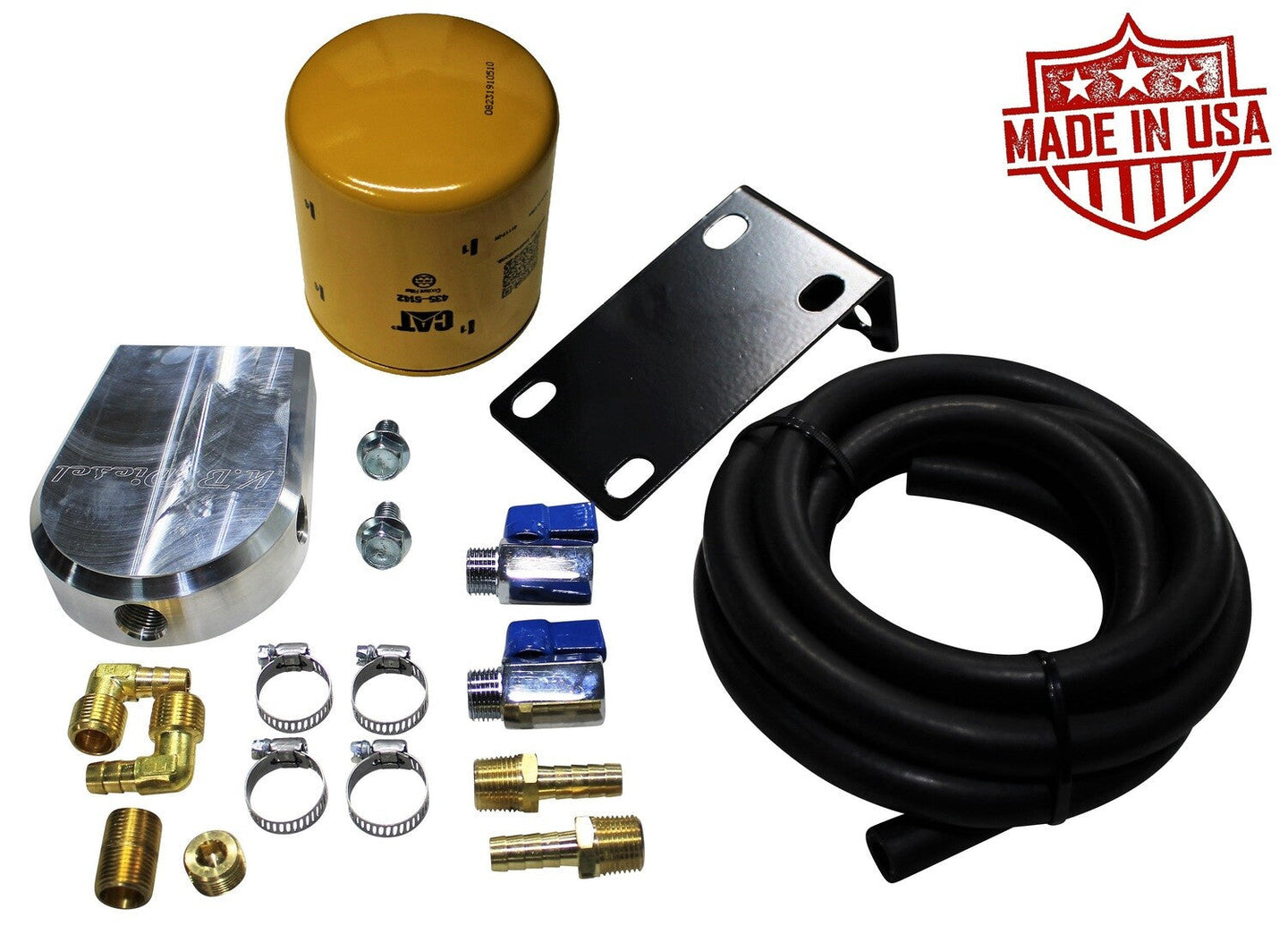

Includes:

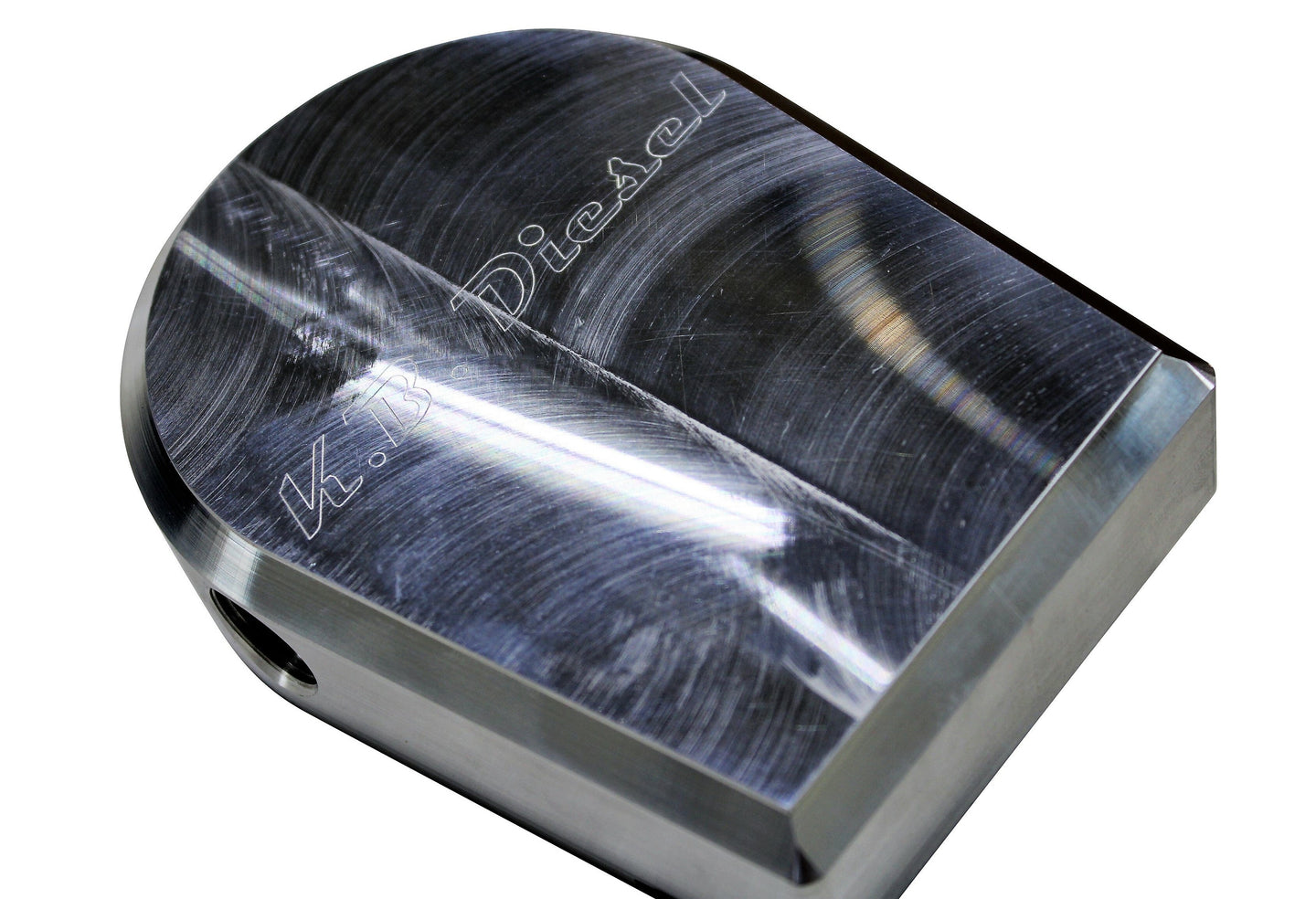

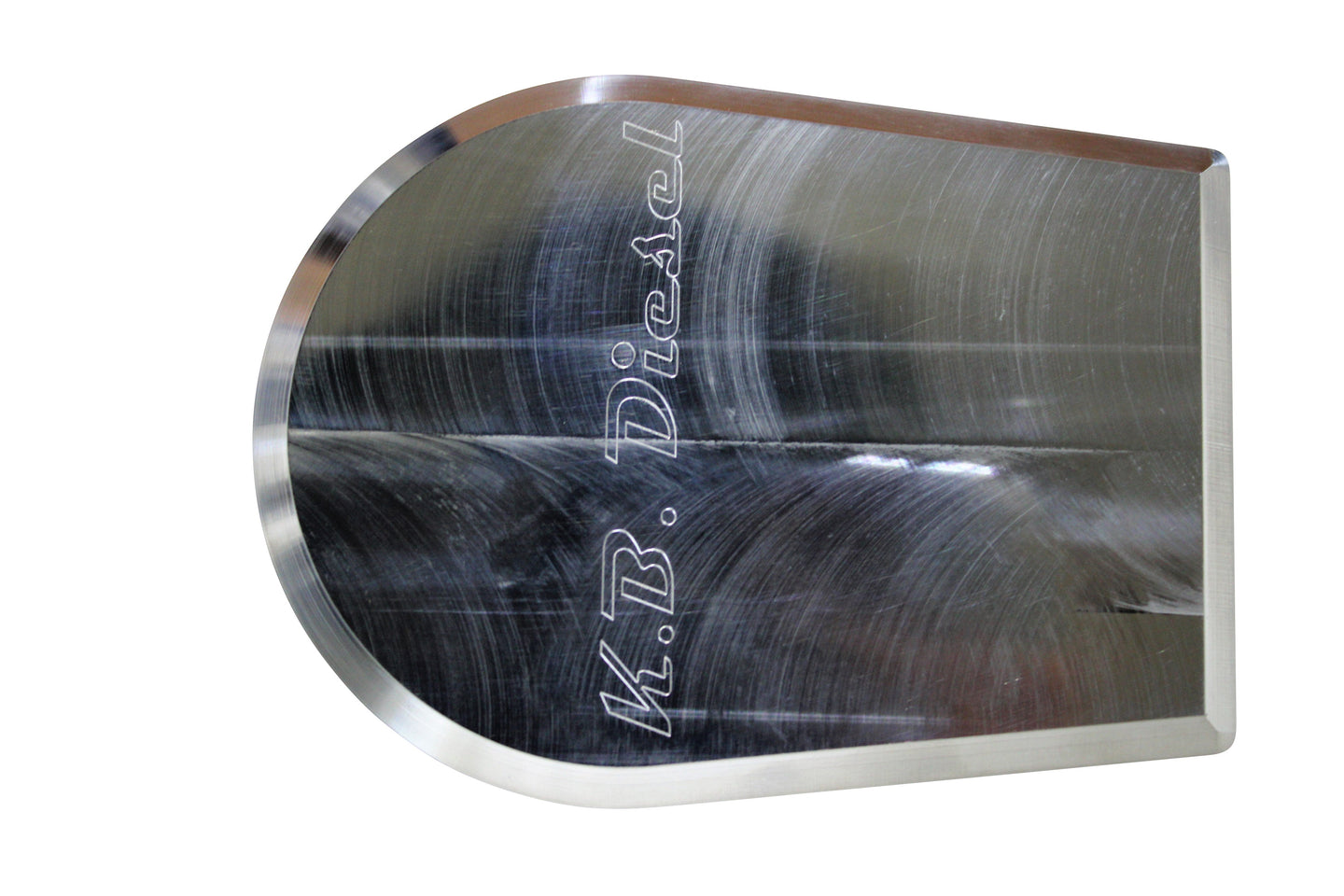

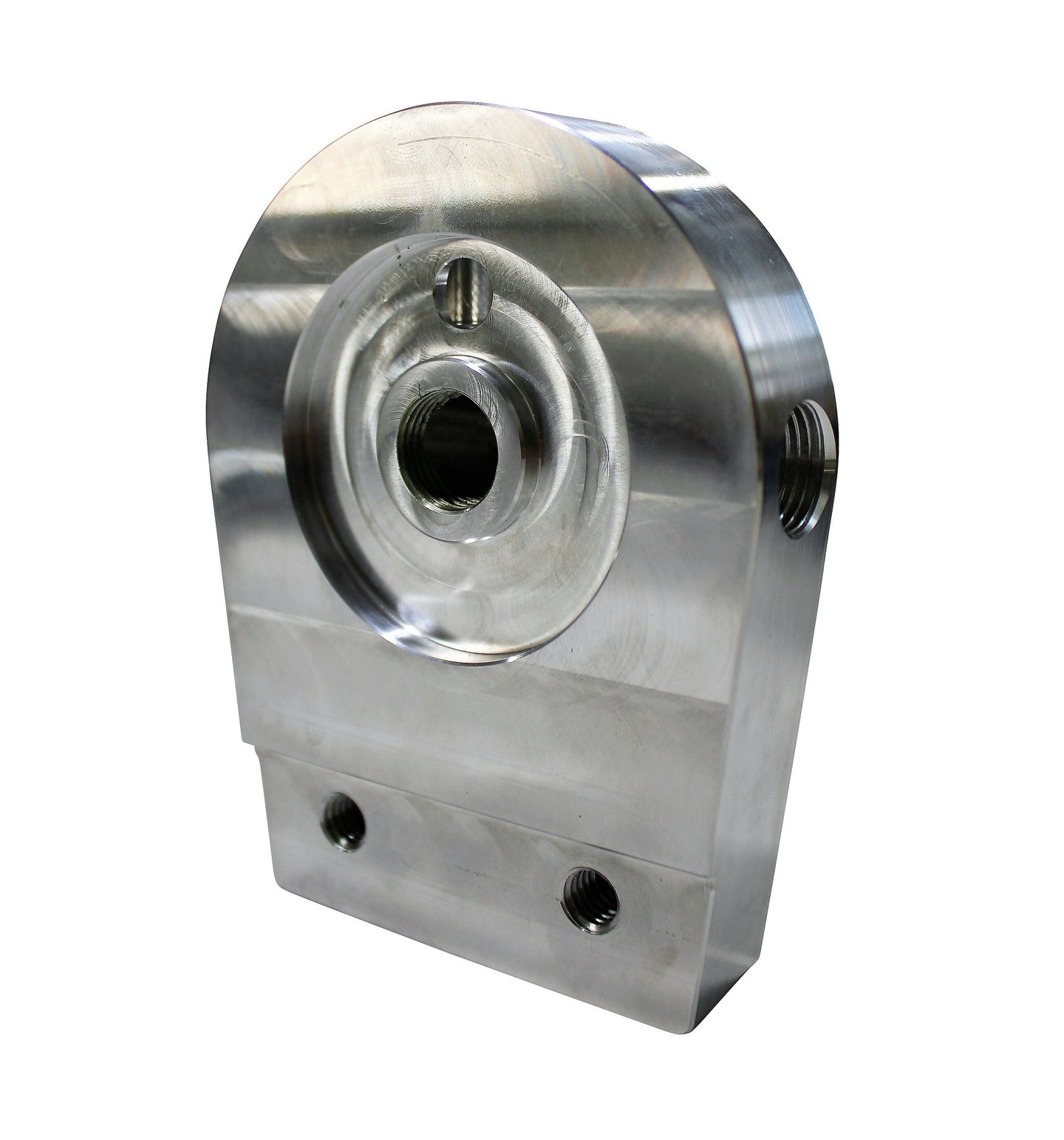

1. Coolant Filter Base (Made in USA)
1. Mounting Bracket (Made in USA)
1. Option of Coolant Filter(s)
1. Filter Nipple
13.5' of 3/8" Coolant Hose
2. 3/8" Ball Valves
4. #6 Hose Clamps
1. Brass 3/8 MPT to 3/8 Barb
1. Brass 1/4 MPT to 3/8 Barb
2. Brass 90° MPT to 3/8 Barb
2. 3/8 Mounting Bolts
1. 3/8 Countersunk Hex Plug

List of filters that can be used on our base:
NAPA: 4070, 4073, 4069
Wix: 24070, 24073, 2469
CAT: 435-5142

Fits: 2007.5-2018 2500/3500 Dodge trucks with 6.7l Cummins

Installation Notes:
2007.5-2012 Mounting Location: Behind relay box on passenger side frame rail.
2013-2018  Mounting Location: The frame behind front bumper has two holes that will line up with the bracket. Two through bolts and washers would be needed (not included).
Return Hose: Side of filter mount to coolant vent hole on passenger side of engine, using supplied 90° MPT to barb fitting.
Supply Hose: End of filter mount (90° from return hose) to 1/4" NPT port located on passenger side of engine head between EGR cooler and valve cover.

Made In USA Disclaimer: Filter base & bracket are made in the USA. Hose clamps, hardware, hose and fittings may be sourced globally.
