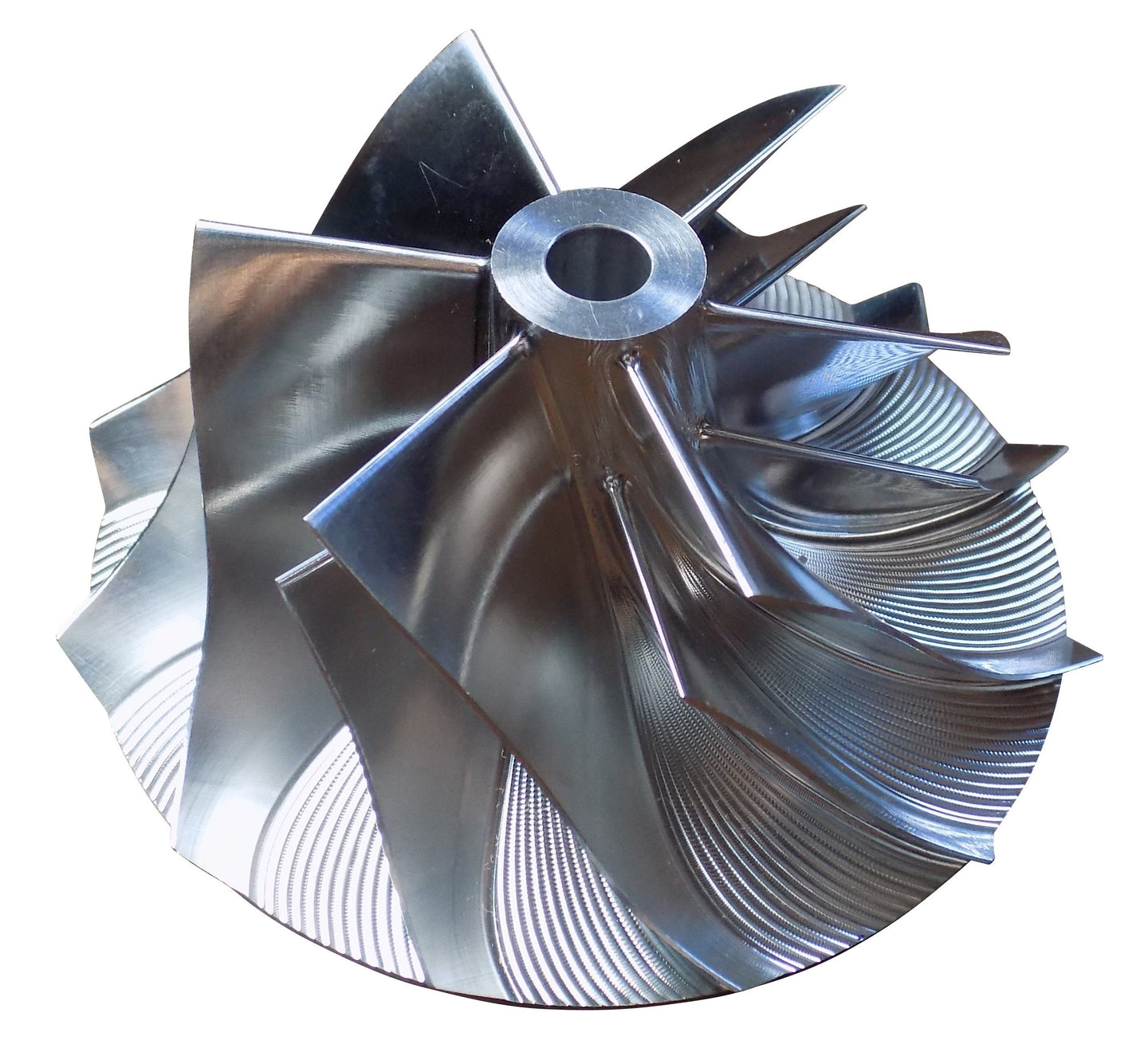

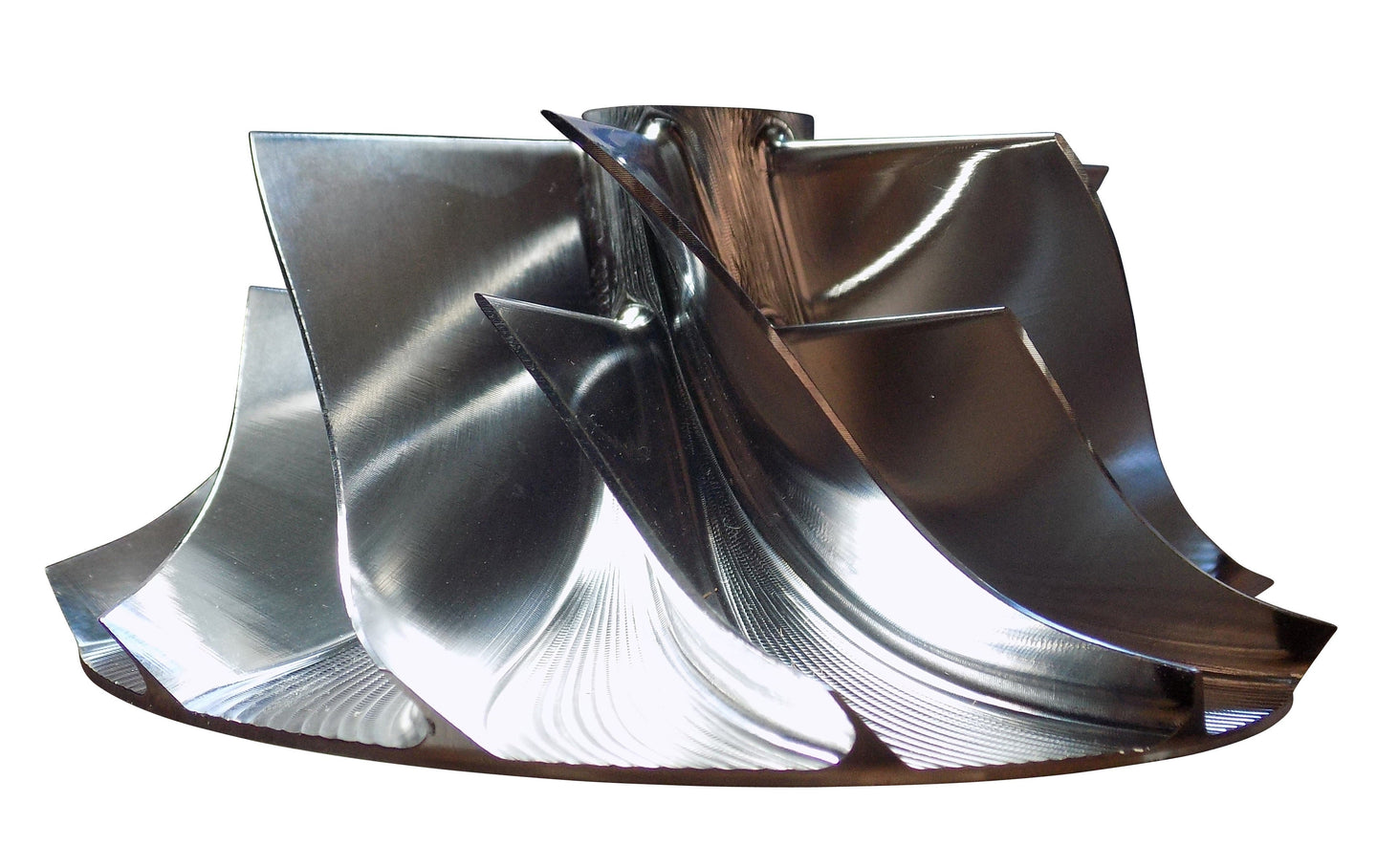

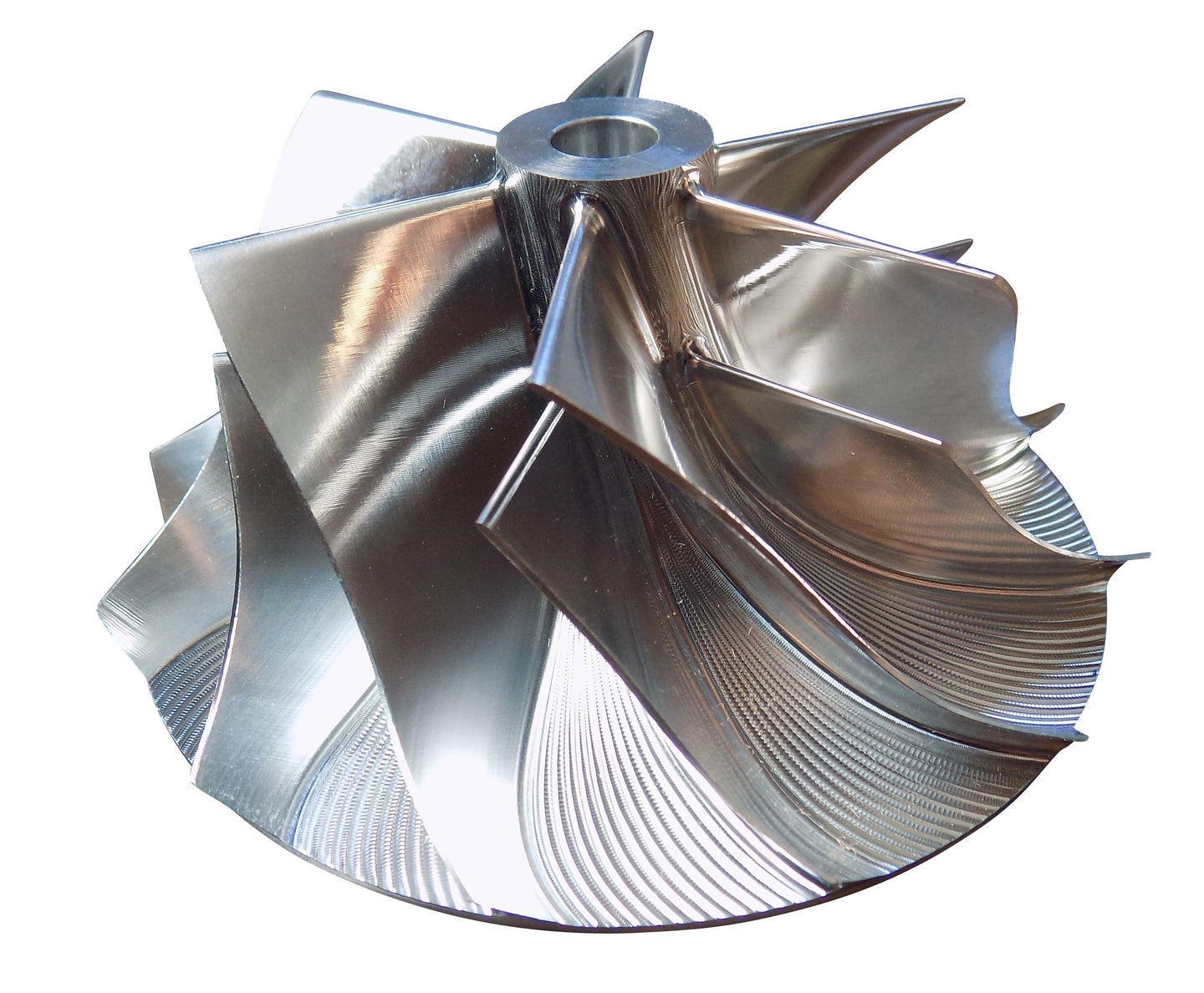

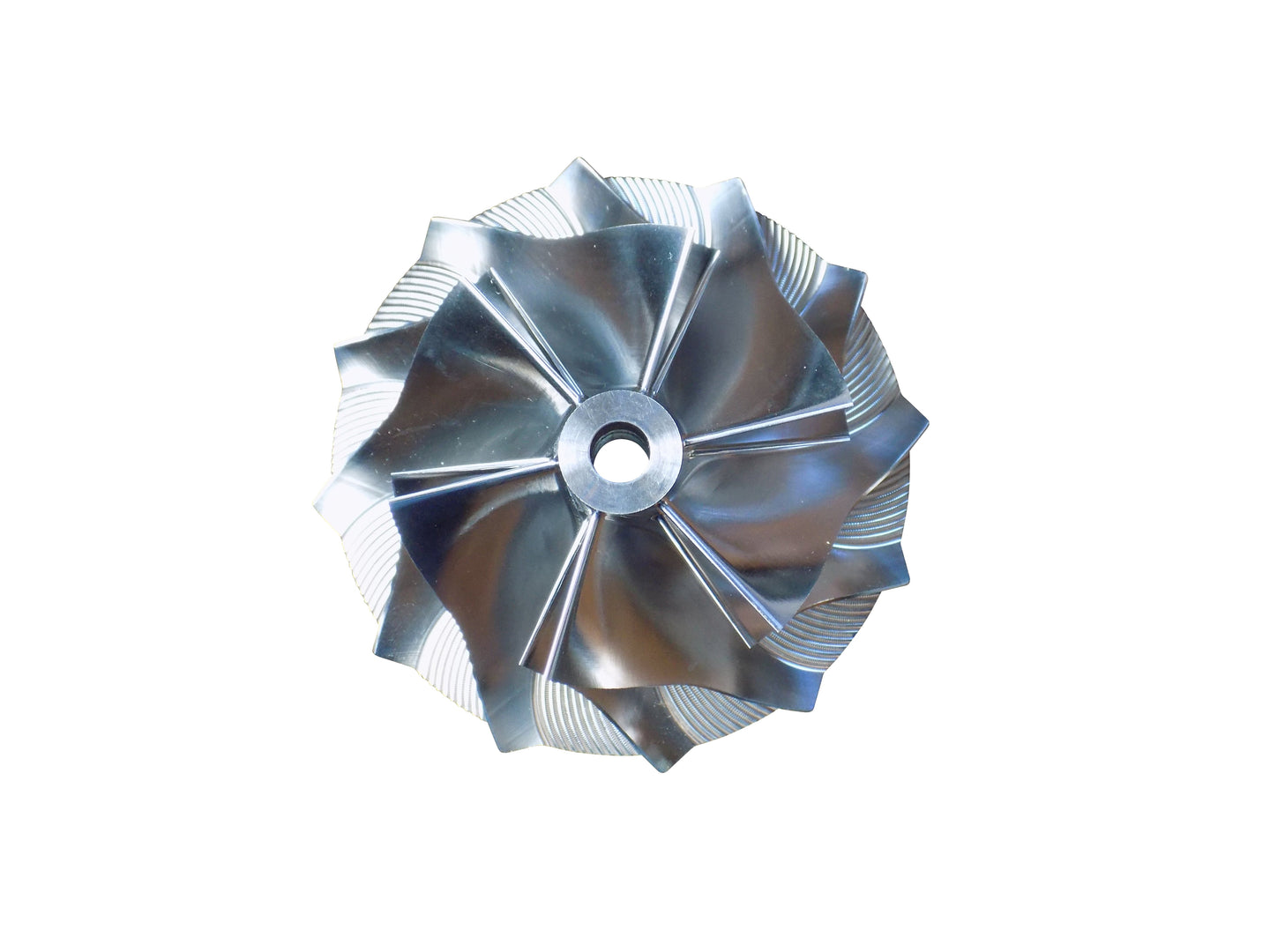

Extended Tip Billet Compressor Wheel for 2001-2004 Chevy GMC Duramax 6.6l LB7

Notice: This Wheel Requires Custom Compressor Housing Machine Work. This is to be done by your local machine shop.
If you are looking for a stock replacement LB7 wheel please check out our other items!

Billet Compressor Specs
Inducer: 67 mm
Exducer Base: 89 mm
Extended Tip: 95 mm
Primary Tip Height: 41 mm
Secondary Tip Height: 30 mm
Nose Width: 15 mm
Blades: 6/6

Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response

This 6/6 compressor wheel was selected for best all-around performance. The 6/6 design will produce more turbo whistle when compared to the stock design. When building a turbo there’s never a perfect choice for the compressor wheel. If the turbo must have extremely fast spooling characteristics we would recommend a 11/0 blade configuration. On the other hand if the turbo must have optimum performance at high engine/turbo rpms we would recommend fewer blades such as a 4/4 blade configuration. This is because at higher rpms more primary blades tend to get in the way rather than pulling in more air. Thus why a 6/6 design provides the best combination of both designs.

Note: The threads on the compressor wheel nut are left hand. Turn left to tighten and right to loosen. Torque specification: 10 Ft-Lbs with blue thread locker.

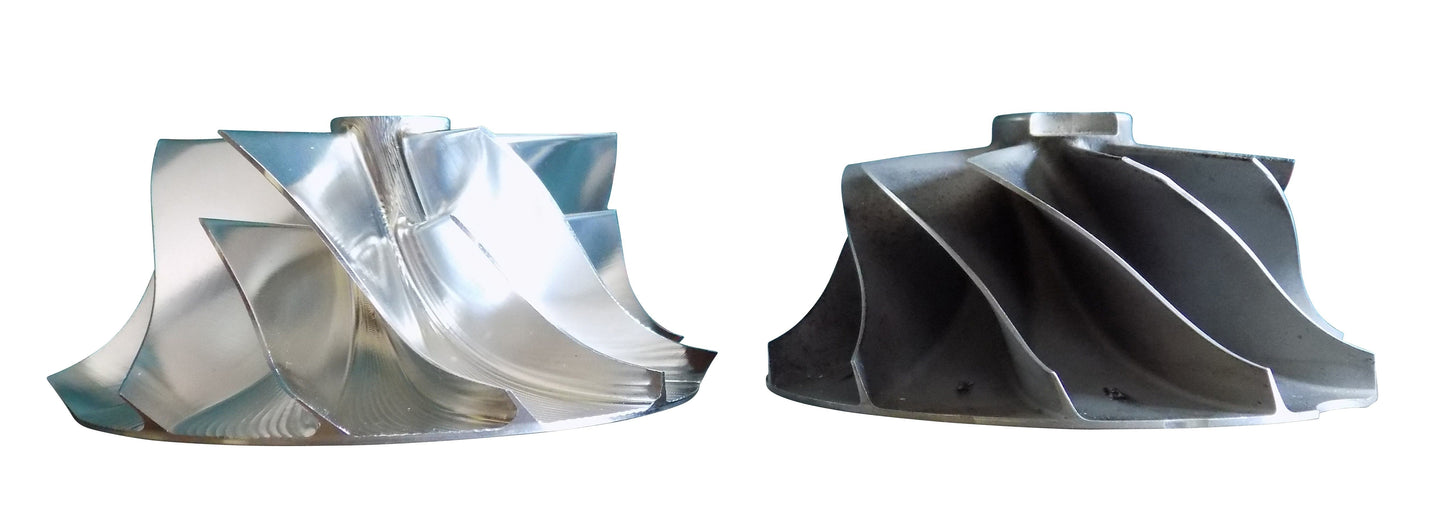

OEM Compressor Specs
Inducer: 60.6 mm
Exducer: 82.0 mm
Primary Tip Height: 38 mm
Secondary Tip Height: N/A
Weight: 133 Grams
Nose Width: 19 mm
Blades: 10/0

Fits: 2001-2004.5 Chevy & GMC 2500 & 3500 applications with the 6.6l LB7 Duramax diesel engine. Notice: This Wheel Requires Custom Compressor Housing Machine Work. This is to be done by your local machine shop.
