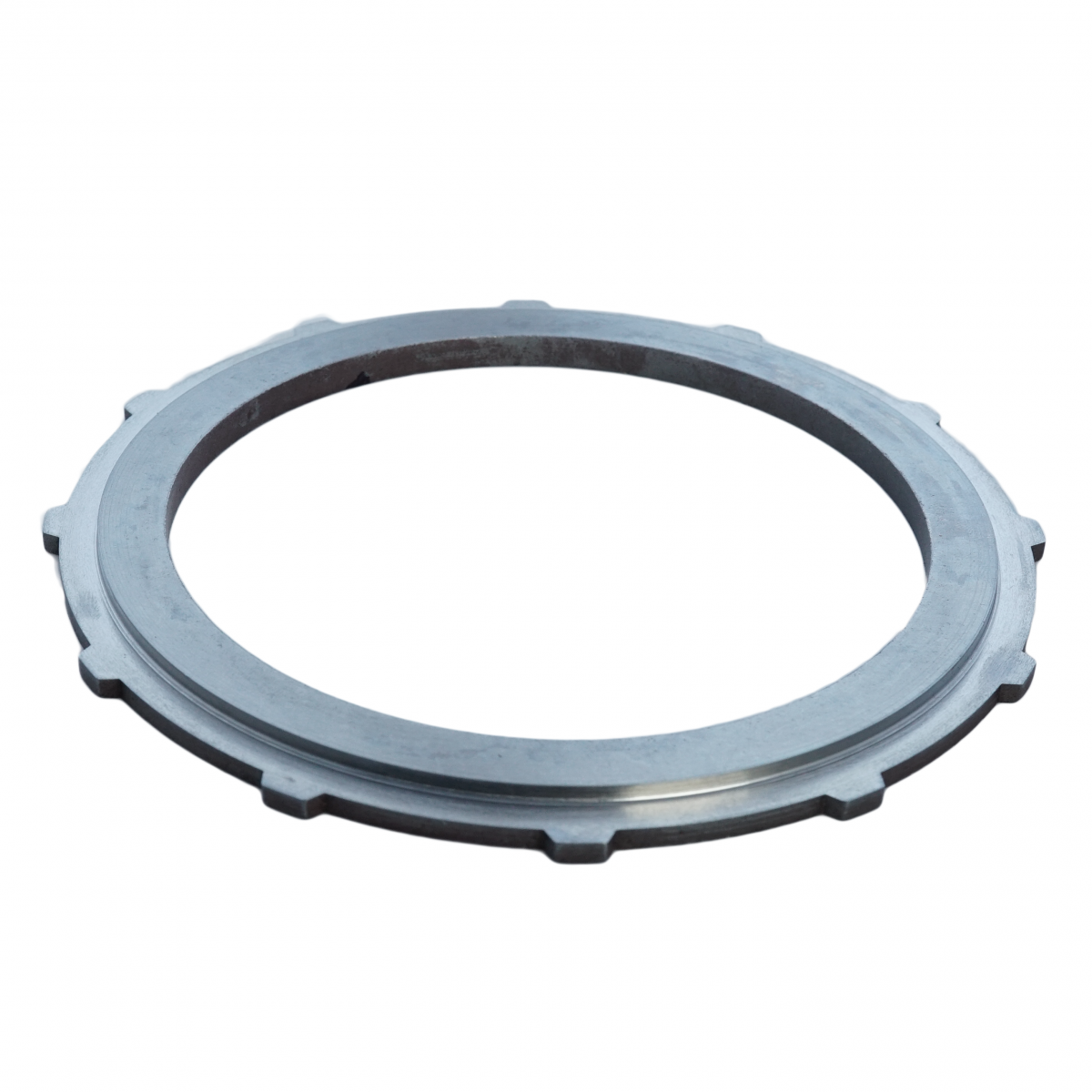

The Power Driven Machined Stepped 3rd/Direct Reaction Plate allows for more third-gear direct clutches. Required to fit (6) GPZ clutches in 47RH or 47RE drum and up to (7) GPZ clutches in 48RE drum.
Note: Some early 47RH and 47RE 3rd/direct drums have a taller aluminum apply piston and will require a new thin .062" snap ring to ensure that adequate clutch clearance is maintained. A minimum of .012" per clutch and a maximum of .020" per clutch is recommended for most applications.
Upgrade your transmission system with the machined stepped 3rd/direct reaction plate for increased clutch capacity and improved performance.
Compatible with:
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
- 1998.5 Dodge 5.9L 24v Cummins
- 1999 Dodge 5.9L 24v Cummins
- 2000 Dodge 5.9L 24v Cummins
- 2001 Dodge 5.9L 24v Cummins
- 2002 Dodge 5.9L 24v Cummins
- 2003 Dodge 5.9L 24v Cummins
- 2004 Dodge 5.9L 24v Cummins
- 2004.5 Dodge 5.9L 24v Cummins
- 2005 Dodge 5.9L 24v Cummins
- 2006 Dodge 5.9L 24v Cummins
- 2007 Dodge 5.9L 24v Cummins
*May not work for all builds due to other engine/vehicle modifications
- Regular price
- $40.00
The Power Driven Machined Stepped 3rd/Direct Reaction Plate allows for more third-gear direct clutches. Required to fit (6) GPZ clutches in 47RH or 47RE drum and up to (7) GPZ clutches in 48RE drum.
Note: Some early 47RH and 47RE 3rd/direct drums have a taller aluminum apply piston and will require a new thin .062" snap ring to ensure that adequate clutch clearance is maintained. A minimum of .012" per clutch and a maximum of .020" per clutch is recommended for most applications.
Upgrade your transmission system with the machined stepped 3rd/direct reaction plate for increased clutch capacity and improved performance.
Compatible with:
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
- 1998.5 Dodge 5.9L 24v Cummins
- 1999 Dodge 5.9L 24v Cummins
- 2000 Dodge 5.9L 24v Cummins
- 2001 Dodge 5.9L 24v Cummins
- 2002 Dodge 5.9L 24v Cummins
- 2003 Dodge 5.9L 24v Cummins
- 2004 Dodge 5.9L 24v Cummins
- 2004.5 Dodge 5.9L 24v Cummins
- 2005 Dodge 5.9L 24v Cummins
- 2006 Dodge 5.9L 24v Cummins
- 2007 Dodge 5.9L 24v Cummins
*May not work for all builds due to other engine/vehicle modifications
- Regular price
- $40.00
