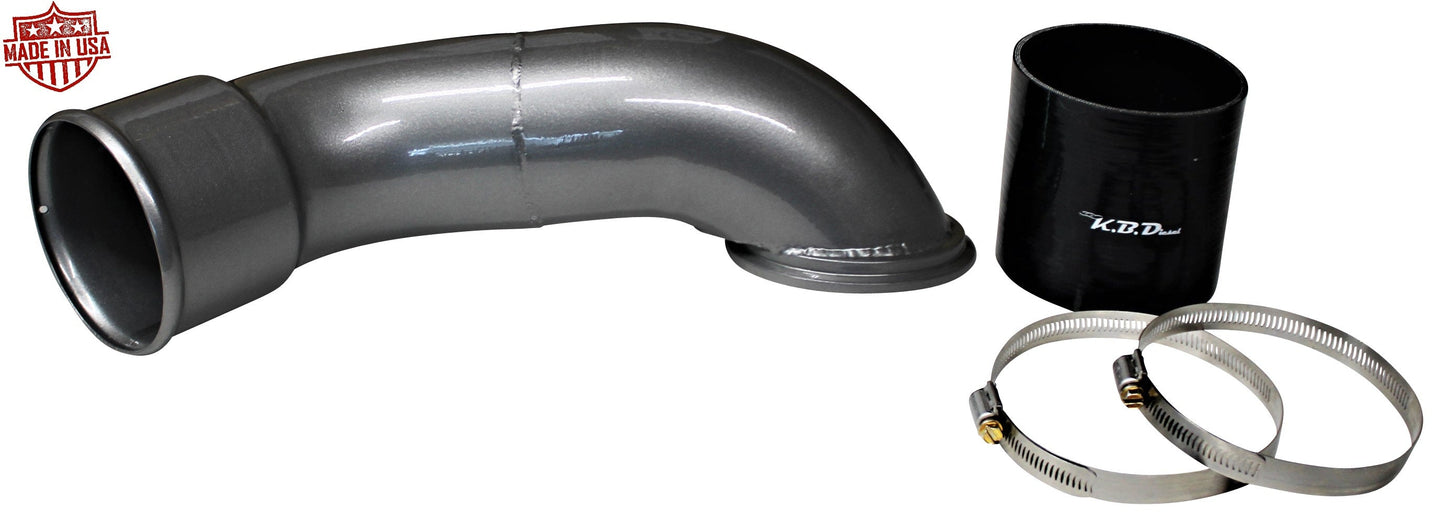

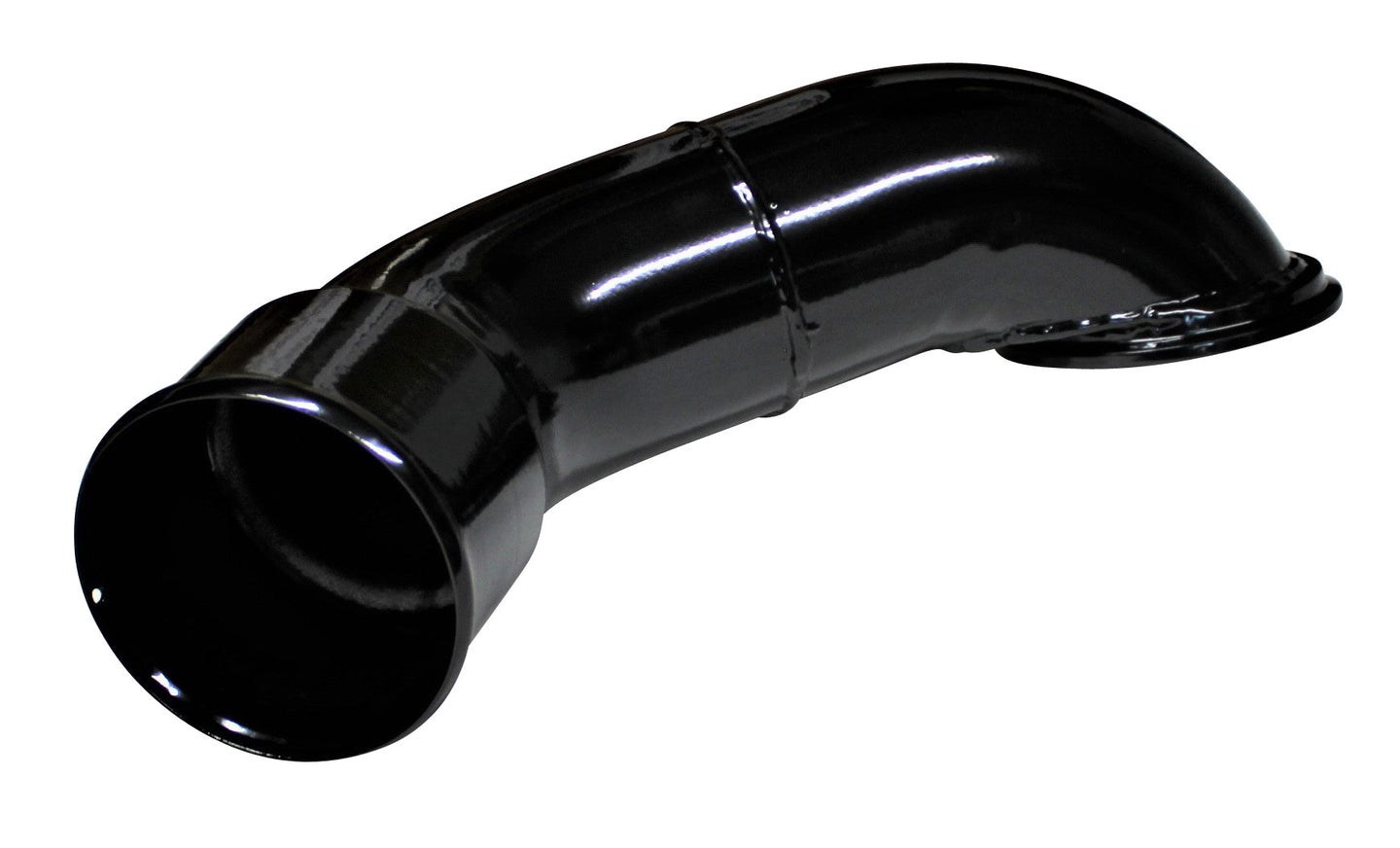

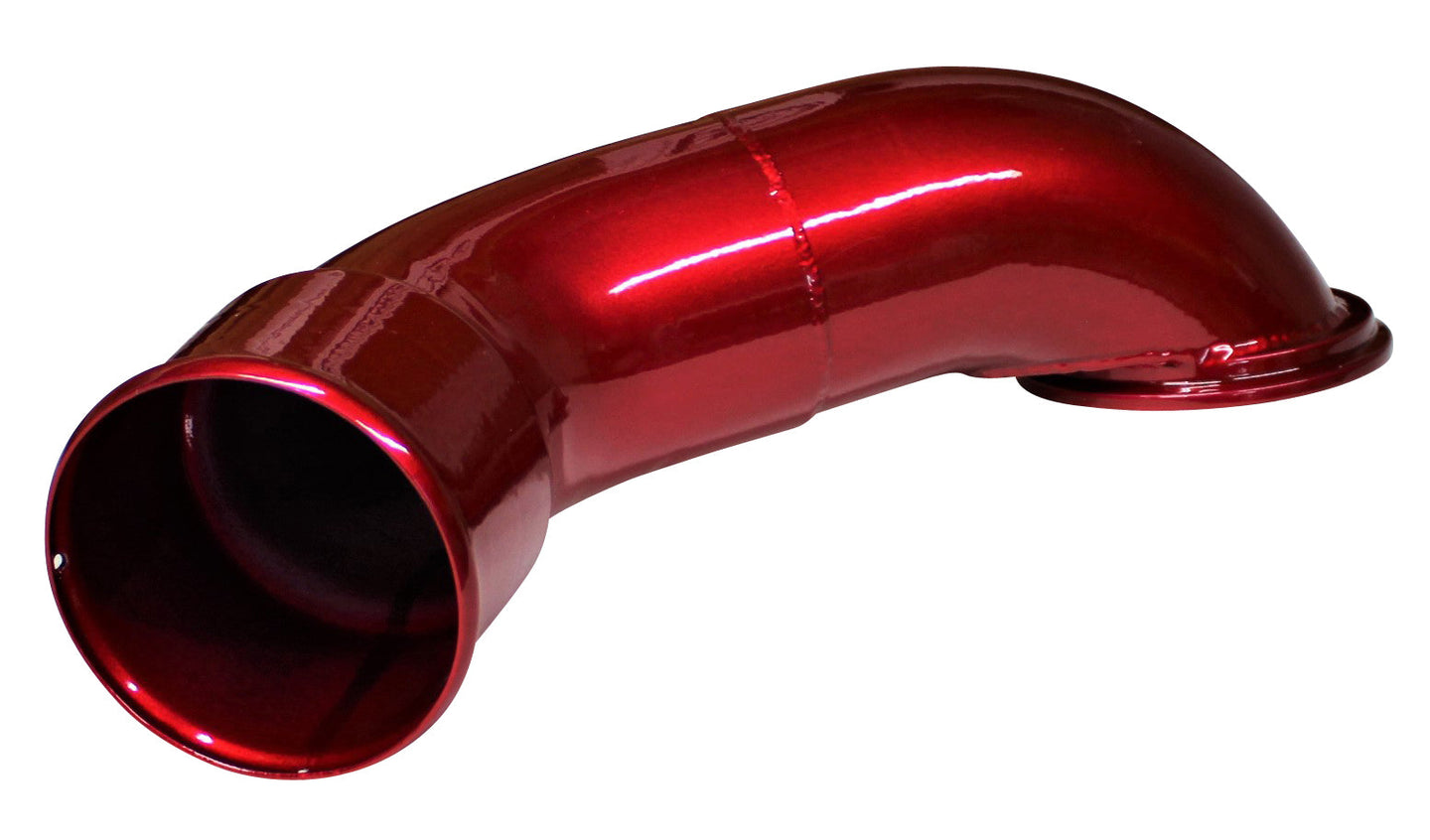

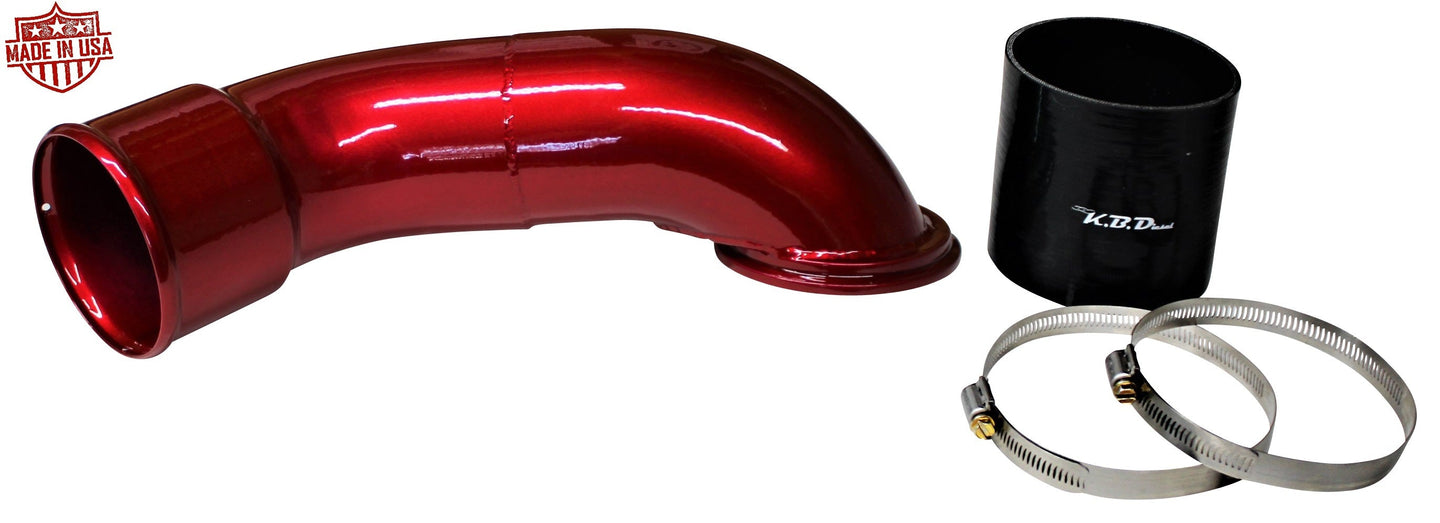

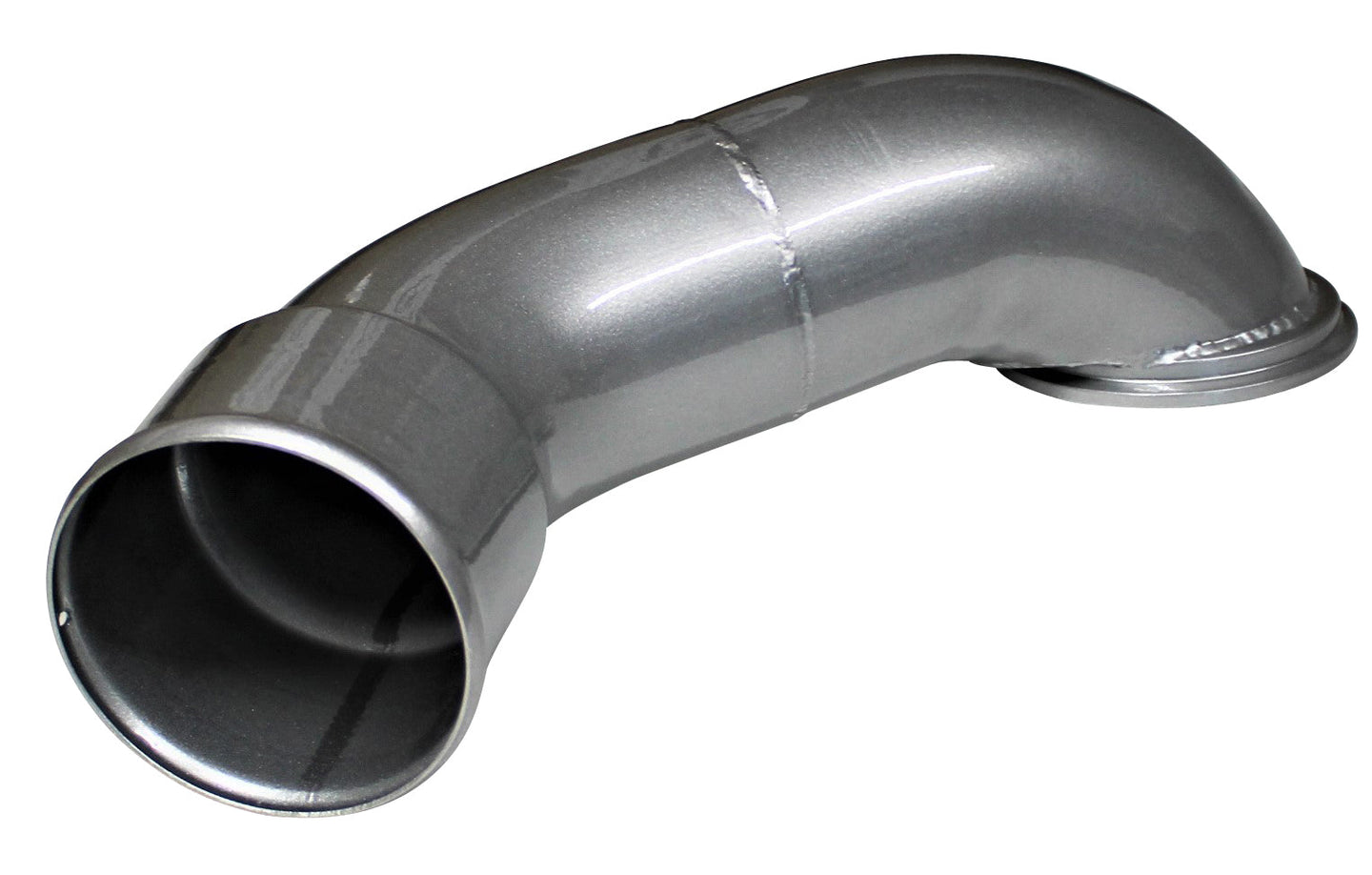

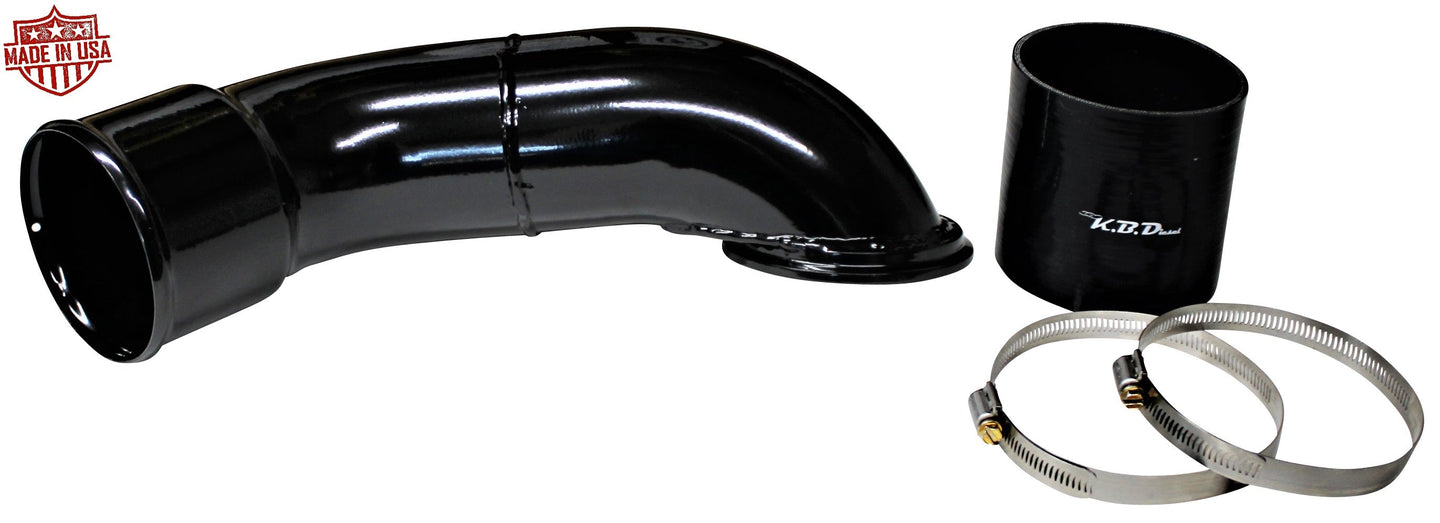

KBDP Turbo Intake Horn for 2004.5-2005 LLY 6.6l Duramax Chevy/GMC

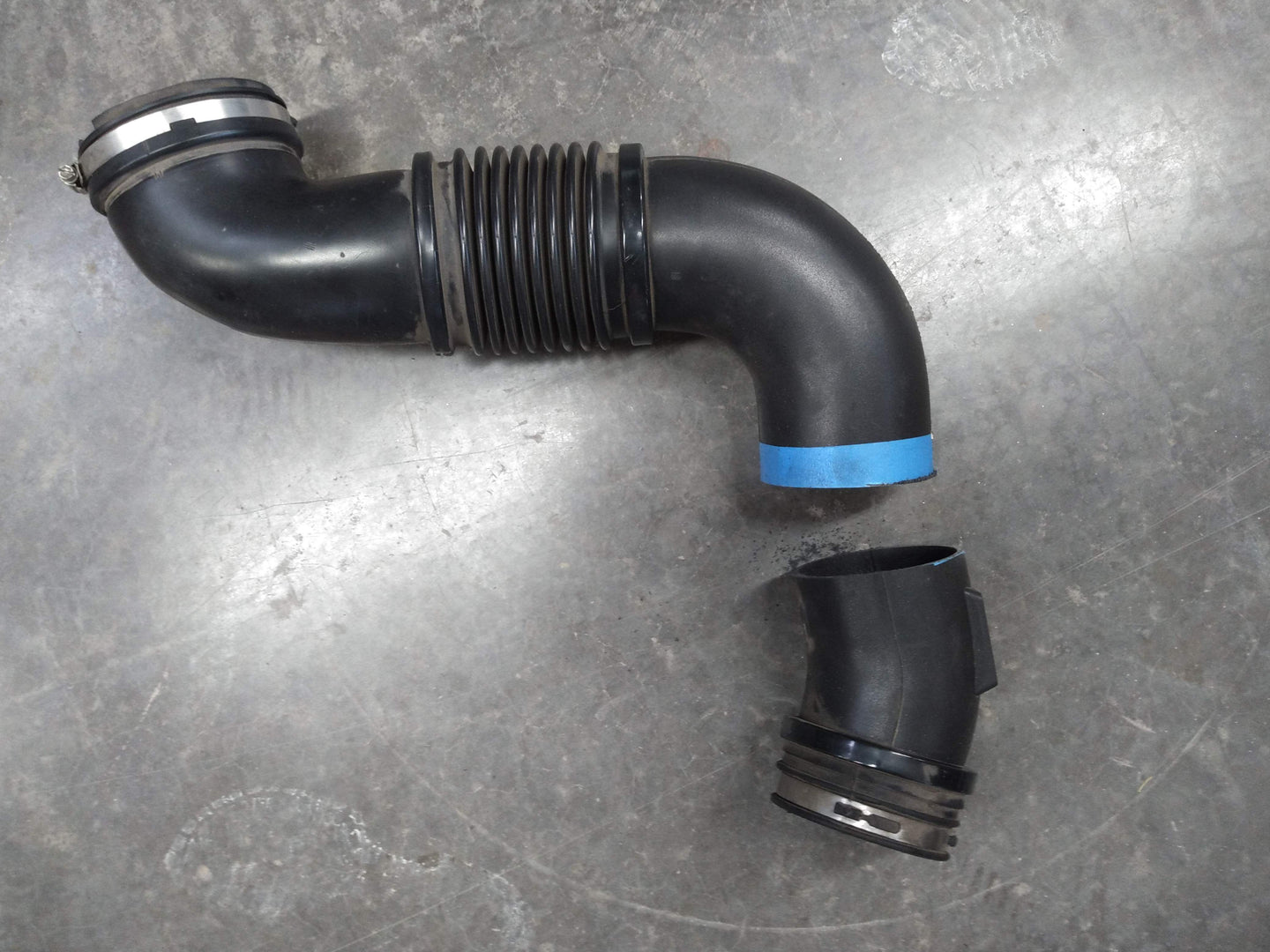

This 3.5" intake elbow replaces the plastic intake elbow which is a huge restriction on the LLY's ability to breath.

Features
Powder coated finish
Full 3.5" mandrel bent elbow
Increased airflow
Lower EGTs

Fitment Notes: Requires trimming of OE air intake tube OR a LBZ intake tube.
Fits most trimmed aftermarket intake tubes that are round (not oval) and route the same as the OE intake. Or purchase a LBZ air intake and no trimming is required.
Can be used with S&B LLY style intakes but requires a custom trimmed 4" elbow. A LBZ intake is the easiest way to install.

Accepts 2.5mm wide x 98mm ID O ring - Not Included *We do not recommend using an O-ring as it can come loose and cause turbo damage.

Fits: 2004.5-2005 LLY 6.6l Duramax in Chevy/GMC 2500/3500 applications.

KB Diesel Performance LLC

Turbo Intake Horn for 2004.5-2005 LLY 6.6l Duramax Chevy/GMC

SKU KB-LLY-TIH-DCR
$198.95

KBDP Turbo Intake Horn for 2004.5-2005 LLY 6.6l Duramax Chevy/GMC

This 3.5" intake elbow replaces the plastic intake elbow which is a huge restriction on the LLY's ability to breath.

Features
Powder coated finish
Full 3.5" mandrel bent elbow
Increased airflow
Lower EGTs

Fitment Notes: Requires trimming of OE air intake tube OR a LBZ intake tube.
Fits most trimmed aftermarket intake tubes that are round (not oval) and route the same as the OE intake. Or purchase a LBZ air intake and no trimming is required.
Can be used with S&B LLY style intakes but requires a custom trimmed 4" elbow. A LBZ intake is the easiest way to install.

Accepts 2.5mm wide x 98mm ID O ring - Not Included *We do not recommend using an O-ring as it can come loose and cause turbo damage.

Fits: 2004.5-2005 LLY 6.6l Duramax in Chevy/GMC 2500/3500 applications.

$198.95
Color:

KBDP Turbo Intake Horn for 2004.5-2005 LLY 6.6l Duramax Chevy/GMC

This 3.5" intake elbow replaces the plastic intake elbow which is a huge restriction on the LLY's ability to breath.

Features
Powder coated finish
Full 3.5" mandrel bent elbow
Increased airflow
Lower EGTs

Fitment Notes: Requires trimming of OE air intake tube OR a LBZ intake tube.
Fits most trimmed aftermarket intake tubes that are round (not oval) and route the same as the OE intake. Or purchase a LBZ air intake and no trimming is required.
Can be used with S&B LLY style intakes but requires a custom trimmed 4" elbow. A LBZ intake is the easiest way to install.

Accepts 2.5mm wide x 98mm ID O ring - Not Included *We do not recommend using an O-ring as it can come loose and cause turbo damage.

Fits: 2004.5-2005 LLY 6.6l Duramax in Chevy/GMC 2500/3500 applications.
