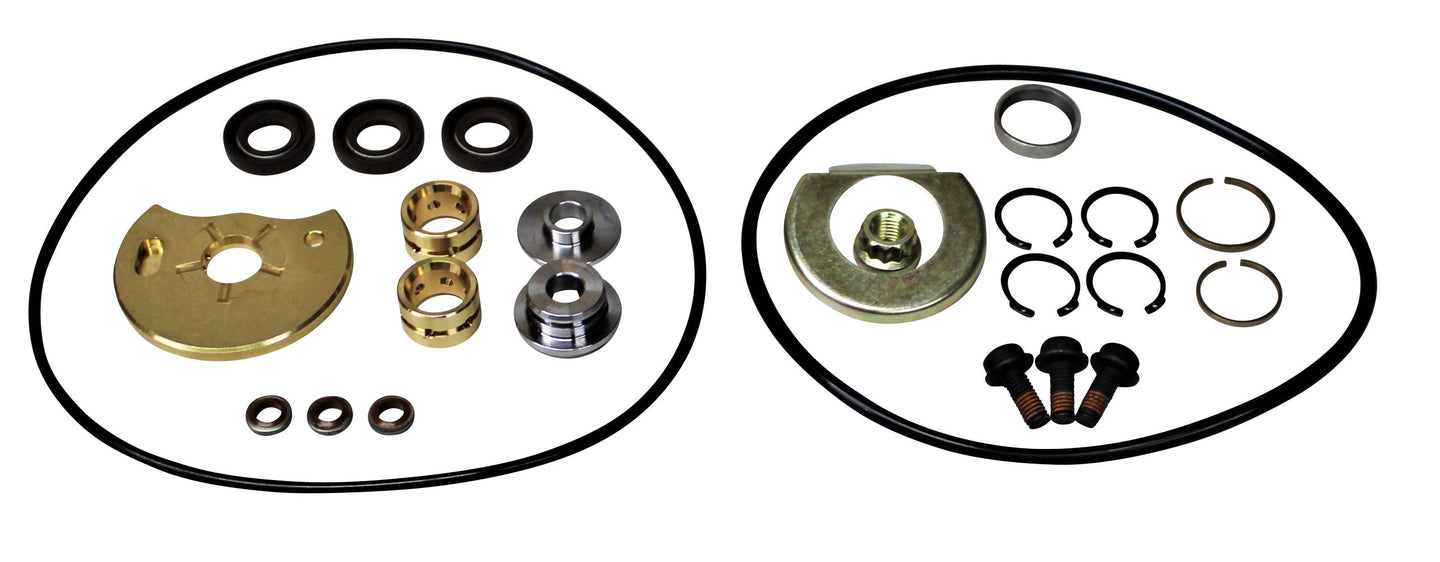

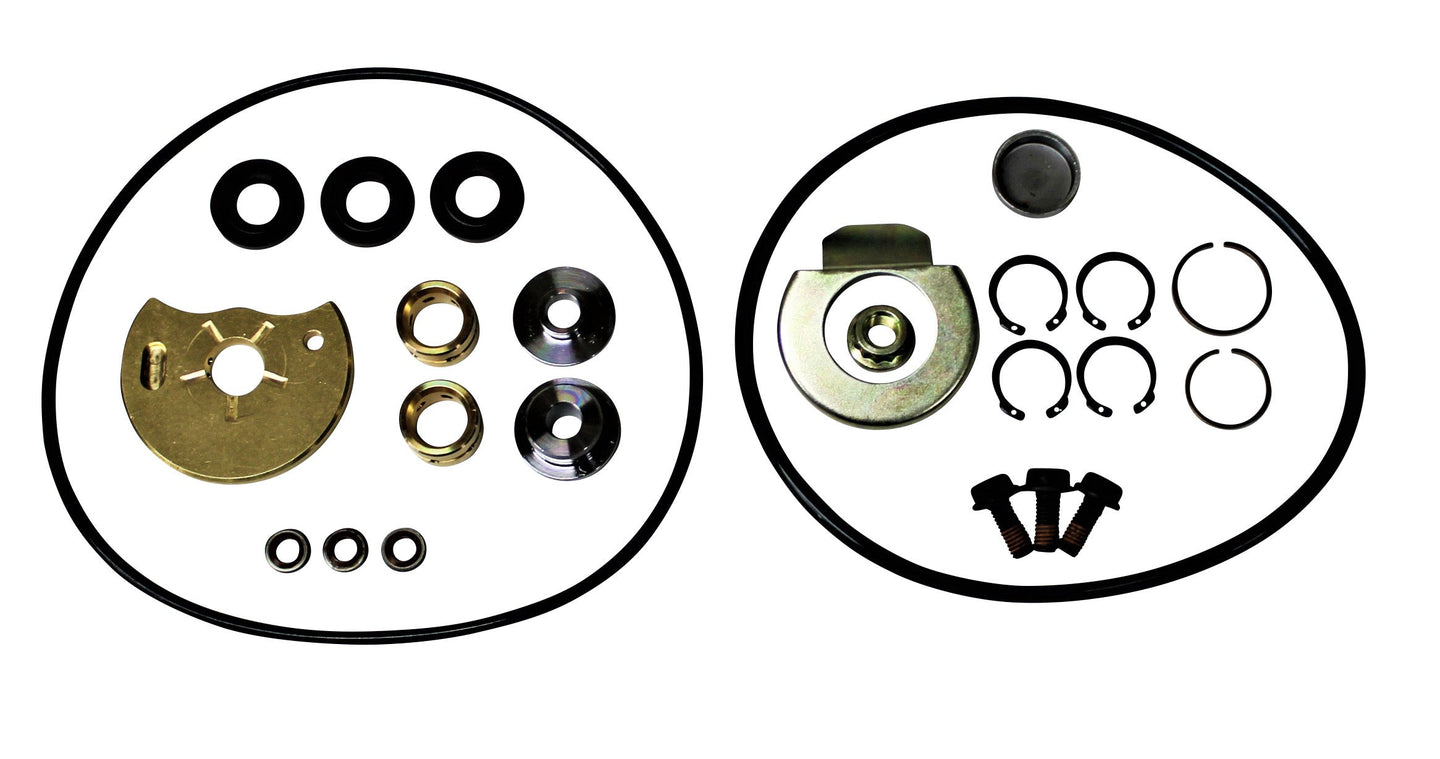

Turbo rebuild kit for 2007.5-2010 Holset HE351VE turbos.
Kit includes:
2 - O-Rings
1 - 360° Thrust Bearing
1 - Thrust Bearing Collar
1 - Thrust Bearing Spacer
2 - Journal Bearings
2- "TS1" Oversized Bearings (HE351VE Kit only)
1 - 12 Point Compressor Wheel Nut
2 - Piston Oil seals
4 - C Clips
1 - Shield
1 - Freeze Plug
3 - Cap Screw Bolts
6 - Rubber Oil Seals
*Watch out for oversized bearing housings.
They are Marked TS1 on the back of bearing housing under turbine wheel.
Soot may need cleaned to see the mark.
- Oversized Bearings Measure: 16.05mm OD
- Stock Bearings Measure: 15.8mm OD
Fits: 2007.5-2010 Dodge 6.7l Cummins with HE351VE Turbo
Torque Specs:
HE351VE Backing/Seal Plate: 30 in-lbs
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
KB Diesel Performance LLC
Turbo Rebuild Kit for 2007.5-2012 Dodge 6.7l Cummins with HE351VE
- Regular price
- $73.95
Turbo rebuild kit for 2007.5-2010 Holset HE351VE turbos.
Kit includes:
2 - O-Rings
1 - 360° Thrust Bearing
1 - Thrust Bearing Collar
1 - Thrust Bearing Spacer
2 - Journal Bearings
2- "TS1" Oversized Bearings (HE351VE Kit only)
1 - 12 Point Compressor Wheel Nut
2 - Piston Oil seals
4 - C Clips
1 - Shield
1 - Freeze Plug
3 - Cap Screw Bolts
6 - Rubber Oil Seals
*Watch out for oversized bearing housings.
They are Marked TS1 on the back of bearing housing under turbine wheel.
Soot may need cleaned to see the mark.
- Oversized Bearings Measure: 16.05mm OD
- Stock Bearings Measure: 15.8mm OD
Fits: 2007.5-2010 Dodge 6.7l Cummins with HE351VE Turbo
Torque Specs:
HE351VE Backing/Seal Plate: 30 in-lbs
HE300VG Backing/Seal Plate: 85 in-lbs
Compressor Wheel Nut: 170 in-lbs - If balanced, align nut and wheel marks.
V-Band Clamps: 150 in-lbs
- Regular price
- $73.95
